Animal Feed Machine
An animal feed machine is the core equipment for boosting feed output and quality. From single units to complete lines, RICHI provides one-stop turnkey service. We cover poultry, livestock, aquaculture, and pet feed. Capacity ranges from 1 to 100 t/h.
All Types of Animal Feed Machine
Conventional poultry and livestock rations differ greatly from high-end aqua feed and pet food. Each type has unique needs in ingredient ratios, gelatinization degree, and pellet forming processes.
Knowing these production traits and matching them with the right animal feed processing machine is key to ensuring final quality and staying competitive in the market.
Poultry Feed Production
The main challenge for broiler and layer feed is strict control over starch gelatinization and powdering rate. RICHI lines often include a multi-layer steam conditioning system. This system promotes full material cooking and effectively kills harmful bacteria. As a result, you get stable, high-density pellets of 1–6 mm diameter. The final feed is nutritionally balanced and significantly improves poultry digestion.
Livestock Feed Production
Our livestock feed processing machine handles complex formulas and high-density forming. Final products include pellets (1–12 mm diameter) and mash forms. For ruminant diets with high crude fiber, we add a dedicated crushing device. This device processes long fibers like straw and grass, meeting roughage processing needs. After pelletizing, a high-efficiency cooler quickly locks in safe moisture. This prevents mold during storage.
Aqua Feed Production
This animal feed machine is built for high-protein, high-fat formulas. Core strengths are ultra-fine grinding and extrusion cooking capabilities. The final pellets offer excellent water stability and full control over floating or sinking. This greatly reduces nutrient loss in water. At the same time, high temperature and pressure deactivate anti-nutritional factors, protecting water quality.
With these solid processes, RICHI equipment handles demanding feeding requirements from common freshwater fish to high-value marine species. It helps modern aquaculture cut costs and boost efficiency.
Pet Food Production
Premium pet food is highly customized. Production deeply integrates twin-screw extrusion and vacuum coating technology. This process handles complex meat-and-bone mixtures and diverse shapes. It also creates internal porous structures for excellent palatability.
RICHI animal food processing machines follow strict hygiene standards. They feature easy-clean, quick-color-change designs. They also allow post-process addition of heat-sensitive nutrients without damage. This perfectly meets diversified, high-end production needs – from mainstream dog and cat food to exotic pet snacks.
FRONT
BACK

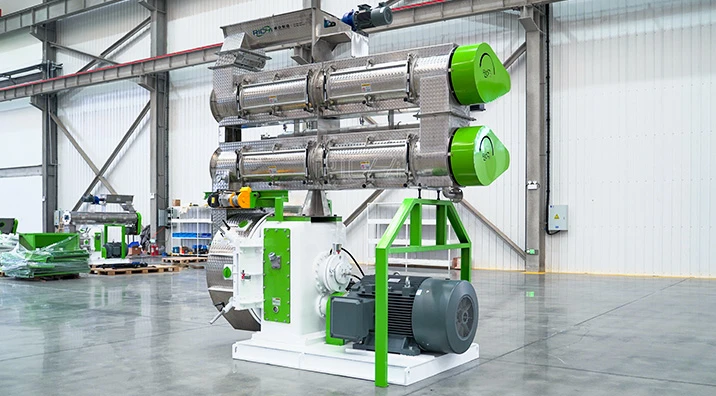

Customizable Animal Pellet Mill
Depending on the target material, animal feed machines differ greatly in process design and die hole sizes. Choosing the right machine category is essential for pellet forming rate and nutrient retention.
Chicken Feed Pellet Machine
Used mainly for chick, broiler, and layer feed. We provide ring dies with 1–6.5 mm holes and a multi-layer conditioning process. This gives pellets good gelatinization and uniform intake by the flock.
Pig Feed Pellet Machine
Covers all stages from piglet to grower to finishing pig. Pellet diameter ranges from 2.5 mm to 12 mm. You just change the die to adjust size. This suits farms or plants that need to produce multiple formula feeds.
Floating Fish Feed Extruder
Designed for common freshwater fish like grass carp, tilapia, and sea bass. Uses twin-screw, high-temperature, high-pressure extrusion to produce floating pellets of 1–12 mm. The feed stays in water for a long time without breaking apart.
Pet Food Extruder
Supports production of dry dog/cat food, semi-moist food, and small pellets for hamsters and rabbits. You can also get custom-shaped dies. If your plant needs frequent product changes, this animal food making machine saves you a lot of changeover time.
Cattle Feed Pellet Machine
Suitable for calf, feedlot, and dairy cattle feed. The compression ratio can be adjusted based on crude fiber content in the formula. Final pellets are 6–12 mm diameter, with moderate hardness for easy chewing and rumination.
Sheep Feed Pellet Machine
This feed processing machine works well if you have large amounts of pasture, alfalfa, or straw residues. It produces 3–8 mm pellets suitable for lambs and adult sheep.
Rabbit Feed Pellet Machine
Rabbits are picky and like to paw at their feed. So this animal food machine includes a forced feeding system. It easily handles high-grass formulas and ensures the 3–6 mm pellets are dense and smooth.
Shrimp Feed Pellet Machine
Designed for shrimp larvae, prawns, and crayfish. Produces 1–3 mm high-density sinking micro-pellets. Through a special pressing process, the feed stays stable in water for over 2 hours.
FRONT
BACK
RICHI SZLH Series Pellet Mill Technical Parameters
As a high-performance animal feed machine for sale, the SZLH Series offers 1–100 t/h capacity coverage to meet various production scales.
SZLH250
Capacity: 1.0–1.5 t/h
Main motor power: 22 kW
Ring die diameter: 250 mm
Ideal for small farm self-use, startup workshops, or lab R&D. Very small footprint and easy to operate. A great entry-level animal feed maker machine for your own feed.

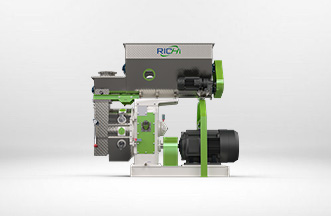

SZLH320
Capacity: 3–4 t/h
Main motor power: 37 kW
Ring die diameter: 320 mm
For medium-scale farms and regional feed distributors. Keeps maintenance costs low while efficiently producing various animal feed pellets.

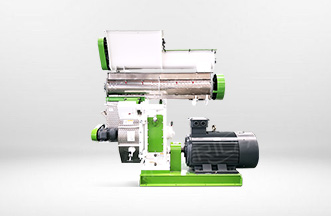

SZLH350
Capacity: 5–7 t/h
Main motor power: 55 kW
Ring die diameter: 350 mm
Deeply customized for ruminants like cattle and sheep, as well as poultry. Better preserves crude fiber integrity during pressing. The final pellets store well and offer excellent palatability.

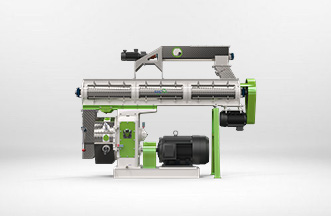

SZLH420
Capacity: 8–12 t/h
Main motor power: 110 kW
Ring die diameter: 420 mm
An animal feed machine for modern medium-scale feed mills. Its core steam conditioning system gives better gelatinization. This effectively improves livestock nutrient absorption and overall feeding efficiency.

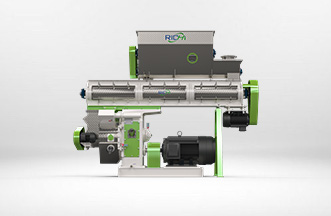

SZLH508
Capacity: 10–18 t/h
Main motor power: 160 kW
Ring die diameter: 508 mm
An industrial-grade animal feed machine built for high-intensity continuous operation. The body uses thickened steel and heavy-duty bearings. It handles dust and high loads without trouble.

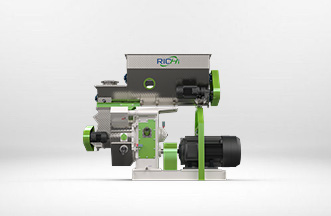

SZLH558
Capacity: 15–25 t/h
Main motor power: 180–200 kW
Ring die diameter: 558 mm
Developed for poultry and aqua feed mills that demand strict quality control. High-precision internal assembly ensures uniform pellet size and a smooth surface. Perfectly meets high-end market standards.
SZLH678
Capacity: 20–30 t/h
Main motor power: 220–250 kW
Ring die diameter: 673 mm
Suits large companies focused on return on investment. While handling high throughput, we’ve deeply optimized the drive system and energy efficiency. This helps control total production cost per ton of feed.
SZLH768
Capacity: 25–40 t/h
Main motor power: 250–280 kW
Ring die diameter: 762 mm
One of the top models in the SZLH series. Designed for bulk livestock and aqua feed. Offers strong overload resistance and 24/7 stability. Fully meets large group’s needs for mass production.
Core Advantages of Animal Feed Machine
High Output, Low Energy
Siemens motor with high-efficiency gear drive reduces power consumption per ton. This saves you long-term operating costs.
Stable Pellet Quality
Extended single or multi-layer conditioner, high-wear resistant parts, and precise cutting knife. Excellent pelletizing process ensures consistent quality.
Reliable and Durable
High-spec forging process. SKF bearings and imported oil seals. All animal feed machines meet CE, TÜV, SGS, and other international certifications.
One Machine for Multiple Uses
Just change the ring die and adjust compression ratio. One animal feed manufacturing machine can produce feed for different animal types and pellet sizes.
Easy Maintenance
Modular design. Key parts are easy to remove. Inspection doors allow daily cleaning and maintenance. This reduces downtime and cuts maintenance costs.
Safe and Intelligent Control
Safety interlock device and independent electrical control system. Real-time monitoring of operating status. Automatic alarm and shutdown if something goes wrong.
Animal Feed Production Process
Raw Material Processing
Pre-treat raw materials to prepare them for pelletizing.
The pre-treatment section includes cleaning, sieving, crushing, and mixing. After these steps, impurities are removed. Particle size reaches the fine level needed for pelletizing. All ingredients mix evenly. The result is a uniform, free-flowing powder blend ready for pelletizing.
Pellets Forming
Press the powder into high-density, balanced feed pellets.
This happens in the animal feed machine or extruder. Through high-temperature, high-pressure conditioning or friction heat, the powder is pressed into dense cylindrical strips. A knife then cuts them into uniform pellets.
By changing ring die hole size and compression ratio, you can produce custom pellets for poultry, livestock, aquaculture, and pets. Pellet diameters from 1 mm to 12 mm.
Post-Processing of Finished Pellet
Treat the pellets after pelletizing to improve quality and storage life.
Post-processing includes cooling, sieving, grading and coating, and packaging. Finished pellets are more stable, last longer, and have better nutrition. They are ready for farms or the market.
Auxiliary Processes
Connect all main processes to ensure continuous, stable production.
In addition to the animal feed machine, you also need some excellent auxiliary equipment to complete pellet production. Auxiliary systems for animal feed production include conveying, dust collection, electrical control, and steam. They move materials smoothly between machines. They also ensure efficient, clean, automatic production.
Auxiliary Equipment for Animal Feed Production
Bucket Elevator
Uses buckets to scoop up powder and pellets and lift them vertically. Smooth conveying with little spillage or loss. A common way to move materials between production steps.
Powder Cleaning Screen
Sieves corn meal, soybean meal, and other powders. These materials often contain straw pieces, dirt, and other debris from harvest and transport. The screen uses mesh to remove large impurities, ensuring clean raw materials.
Hammer Mill
Grinds raw materials to the right fineness. Uniform grinding makes subsequent mixing and pelletizing smoother. It also helps poultry like chickens, ducks, and geese digest feed more easily.
Feed Mixer
Accepts ground grain powder, chopped grass, and various nutrient additives at the same time. Internal paddles mix everything thoroughly.
Pellet Cooler
As a companion to animal feed machines, the cooler cools and dehumidifies 80-90°C pellets to room temperature to ensure that the moisture reaches a safe storage level.
Belt Dryer Machine
Pellets spread evenly on a mesh belt. Hot air passes through to remove moisture. This machine is mainly used to reduce moisture and prevent mold in extruded aqua feed and pet food.
Grading Screen
Separates fines and oversized pellets. Acceptable pellets go to the finished product bin. Fines go back to pelletizing. Oversized pellets need re-crushing or re-grinding.
Packaging Scale
Packing accuracy ±0.1%. Can be paired with automatic bag sewing machines and palletizing robots for a fully automated line.
Pulse Dust Collector
Crushing and conveying powder creates a lot of dust. This unit uses compressed air to automatically clean filter bags and continuously collect dust. It improves workshop air quality and recovers feed powder that would otherwise be lost.

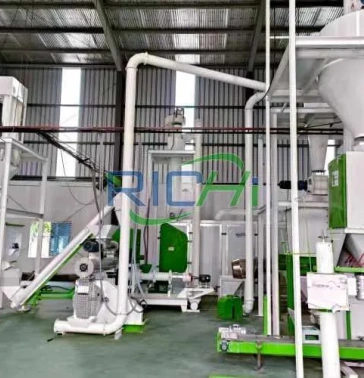

Animal Feed Production Real Shots
Here we show real images of our feed lines running and customers testing animal feed machines. These unedited videos help you quickly assess RICHI animal feed equipment performance. They give you confidence in your purchase.
Nigeria Chicken Feed Processing Factory
We equipped this factory with a complete chicken feed production line, from crushing and mixing to pelleting, cooling, and packaging. As can be seen in the video, the noise of the granulator is very low when it is running at high speed, and the test workers can speak easily while standing next to it.
The pellets that come out are screened by a precision screen and have uniform size, smooth surface, and good gloss. This kind of pellet chicken is easy to eat, and the feed intake will naturally increase.
Philippine Pig Feed Processing Factory
The customer wanted a complete pig feed production line, from mixing, granulating, screening to conveying, in one step. The line we delivered has been installed and debugged. The equipment layout is compact and the work sections are smoothly connected.
In the video, you can see close-ups of the mixer, animal feed making machine, vibrating screen and conveying equipment – the entire line realizes automated continuous production, requiring almost no manual intervention, saving a lot of manpower.
Russian Fish Feed Production Line
The video records the entire process of the material testing machine for this 2T/H aquatic production line. Bucket elevators deliver materials to various work sections, and the entire process is automatically connected without manual handling.
We adjusted the extrusion parameters and formula according to the characteristics of local raw materials. As can be seen from the close-up of the fish feed, the pellets produced by this animal feed machine are of good quality. The pellets have a bright surface, uniform size, and excellent quality.
FRONT
BACK
Listen to Real Voices
From North American farms to African factories, partners around the world are achieving capacity growth with our equipment. Their real voices show RICHI’s expertise and reliable service in animal feed pelleting.
A few years ago, our farm’s old pellet mill kept breaking down. Feed supply couldn’t keep up with livestock growth. After comparing many suppliers online, we chose RICHI. Their technical team patiently analyzed our raw material traits and recommended the best model. This animal feed production machine has now run smoothly for over two years. Pellet quality is excellent. The animals love it.
David Miller
Family Farmer, From A Small Farm In The United States
We found the feed making machine price to be highly affordable. And Their operation training let our local workers get started in just one day. Shipping was a bit slower than expected due to customs, but the machine itself is really great. Highly recommended to anyone looking for high-value animal feed machine.
Liam O’Connor
Entrepreneur, From An Agricultural Company In Australia

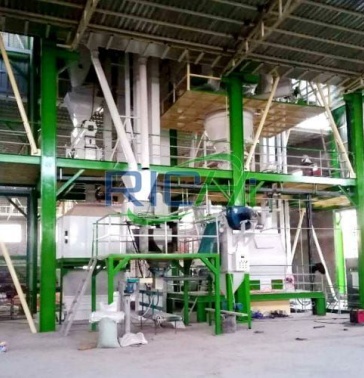

When we built our plant in Kenya, we faced two tough problems: unstable power and high raw material moisture. Many suppliers thought the project was too difficult. But RICHI’s engineers flew to our site for a real assessment. They adjusted the conditioner and motor configuration specifically for us. Today, our organic fertilizer pellet line runs at full capacity every day – a very rare level of stability in the region.
John Mwangi
Factory Director, From Kenya Poultry Feed Factory

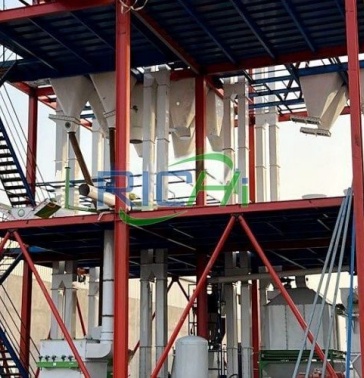

Our project needed precise automation to produce high-protein aqua feed. RICHI’s sales engineer immediately understood our exact needs and designed an optimized workflow. The PLC control system runs perfectly. It significantly cuts our labor costs while keeping pellet durability consistent.
Rajesh Patel
Production Supervisor, From An Aquatic Feed Processing Plant In India
Buyer’s Guide & Support Center
Buying feed processing equipment is a major investment. So we’ve collected the core questions customers often ask. We hope these direct answers help you think clearly.
How do I choose the right animal feed machine?
→
Decide which animal feed you want to produce
Study your local feed market and identify your target customer group. For example, do you plan to make feed for poultry (chickens, ducks), livestock (pigs, cattle, sheep), aquatic animals, or pets? Different digestive systems require different pellet hardness, size, and gelatinization. This directly decides whether you need a ring die pellet mill or an extruder.
Know your raw material types
Understanding which raw materials are easily available to you is crucial. If your main ingredients are common grains like corn and soybean meal, standard machines will work. But if you need to process high-fiber materials like grass or straw, you’ll need custom equipment with forced feeding, multi-layer conditioning, and high wear resistance.
Estimate capacity needs and budget
Based on your farm size or expected sales, estimate your daily or hourly output target. We offer transparent and competitive animal feed machine price options to suit both small-scale farms and large commercial factories. Investing in a high-quality system is often more cost-effective in the long run than simply choosing the lowest feed making machine price. Also allocate your budget reasonably. Besides initial equipment investment, consider future energy costs, wear parts replacement, and maintenance.
Get professional advice for custom solutions
The final animal feed making machine price is determined by your required capacity, power consumption, and specific customization needs. If you’re unsure how to match equipment, just contact us. Based on your floor space, power conditions, and business goals, we provide free professional selection advice and ROI analysis.
Can I buy just one pellet mill?
→
Of course. We fully support flexible purchasing strategies.
Many startups or individual farms start by buying just a pellet mill to use with their existing grinder or mixer. Last year, three Southeast Asian customers did exactly that. This approach lowers early financial pressure. It lets you start production quickly with minimal trial cost.
Seamless future upgrades
As your business grows, you can buy a cooler, screener, packaging scale, and other units from us to expand your line. Our machines are modular from the start. This ensures future additions work perfectly with your existing mill, avoiding waste from duplicate investment.
Plenty of success stories
Many of our overseas customers started with a single machine. After one or two years of steady growth, they upgraded to complete turnkey lines. No matter what stage you are at, RICHI will be your reliable long-term partner.
What services do you provide when I buy your equipment?
→
We are committed to supporting you from project planning to stable production:
In-depth needs discussion: We listen one-on-one to your pain points and expectations, then clarify your core requirements.
Custom solution design: Free process flow diagrams and plant layout suggestions to optimize space and material flow.
Production progress updates: After order confirmation, we regularly update you on manufacturing progress so you know the delivery schedule.
Pre-shipment inspection and delivery: Before shipping, each machine undergoes strict no-load and load tests. We provide video records for your confirmation to ensure everything is correct.
Installation guidance and performance acceptance: We send experienced engineers to your site to guide installation and commissioning. We do not leave until pellet quality meets agreed specifications.
After-sales and spare parts supply: 12-month warranty on the animal feed machine. After warranty, only spare parts are charged for repairs. Plus, a well-stocked global spare parts warehouse, 7×24 technical support, and lifetime maintenance service. This minimizes your downtime.
Learn more: For customers who want a hassle-free experience, we also offer EPC turnkey service. From civil planning, equipment procurement, electrical controls, to staff training – we handle everything. You get easy “one-button start.” Just contact us.
