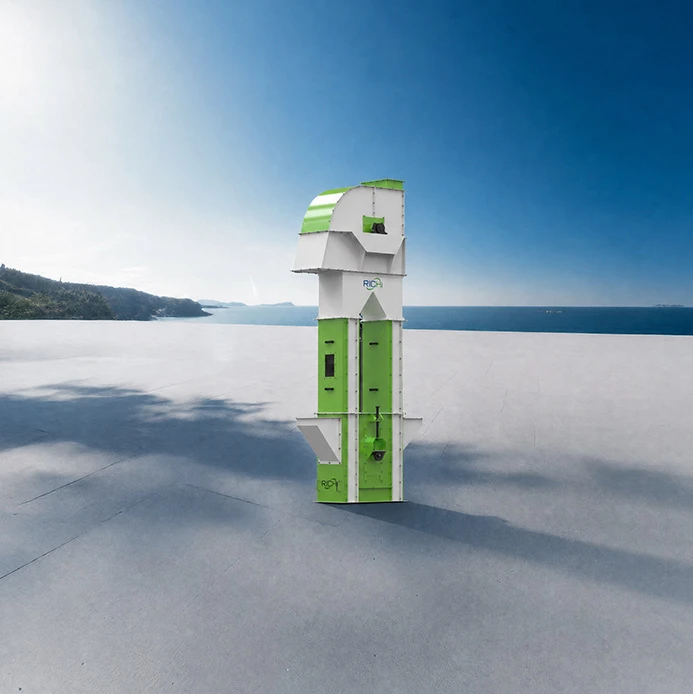

Bucket Elevator

RICHI bucket elevator moves materials straight up and saves valuable floor space. The tough buckets and reinforced belt handle heavy vertical lifting without any trouble. You get a reliable system that stops spills and keeps your plant clean. It works perfectly for feeding tall silos or reaching high processing floors during peak production.

Product Overview

The bucket elevator is a high-speed vertical carrier built for heavy-duty lifting. It uses reinforced buckets on a strong belt to move grains or pellets straight to the top. The direct-drive motor ensures constant power while the self-cleaning boot prevents material buildup at the bottom.

This machine is a real space-saver that treats your product gently to stop pellets from crumbling. It runs smoothly in dusty conditions and needs very little maintenance to keep your line moving. It’s the most efficient way to connect your ground floor to tall silos without any bottlenecks.

Capacity: 6-100 T/H

Power: 4-37 KW

Consult Price and Service

Technical Structure of Bucket Elevator

Check out how we built the bucket conveyor to handle your vertical lifting needs with ease. We focused on making every part tough enough for long hours of heavy work. This simple but strong design ensures your grain or pellets move up fast without any trouble. It is a reliable machine that keeps your production line flowing perfectly every single day.

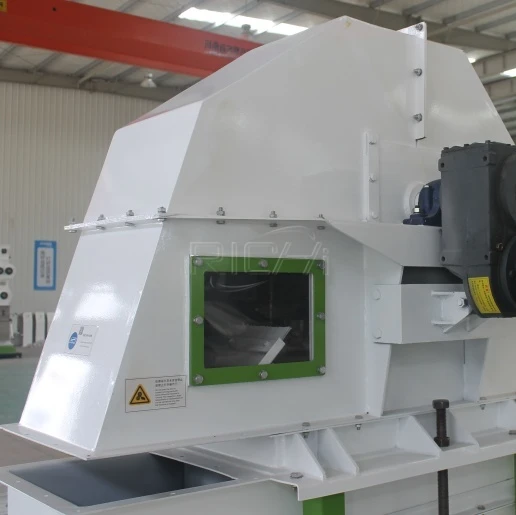

Head Section

The head section is the top point where the material finally leaves the bucket elevator. We designed the internal curve to make sure every bucket empties out completely. This prevents any grain from falling back down the shaft and causing a mess. The housing is built from thick steel to handle the constant impact of moving goods.

It is the brain of the machine that directs the flow toward the next conveyor. Everything is sealed tight to keep the dust inside your factory.

Learn More

Belt Chain

The belt or chain is the backbone that carries all the heavy buckets up high. We use high strength materials that do not stretch or snap even under a full load. You can choose the best option based on how much material you need to move each hour. The buckets are bolted on securely so they never wobble during the trip.

This part works silently and stays on track for a very long time. It is a smooth ride for your product from the bottom all the way to the top.

Learn More

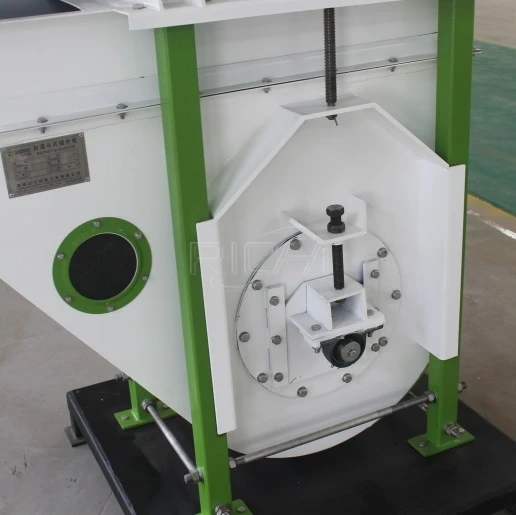

Boot Section

The boot section is the base where the material enters the machine for lifting. The bucket elevator features an easy tensioning system to keep the belt tight and running straight. We added clean out doors so you can remove any leftover grain quickly and safely. This prevents old material from rotting or mixing with your new batches.

The heavy base keeps the whole tower stable while it works. It is a smart design that makes the start of the vertical journey very efficient and clean.

Learn More

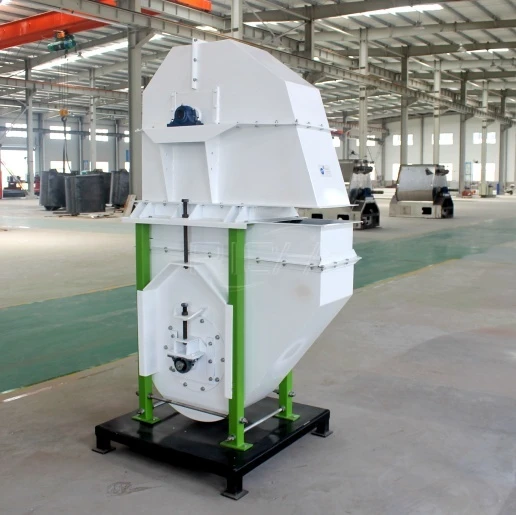

Machine Casing

The casing is the protective shell that connects the head and the boot sections. These modular steel tubes keep the buckets moving in a safe and enclosed space. It protects your material from the outside weather and keeps your factory floor tidy.

The smooth inner walls reduce friction and noise while the machine is running at full speed. We made it easy to assemble and very strong against the wind. It provides the solid support your elevator needs to reach great heights.

Learn More

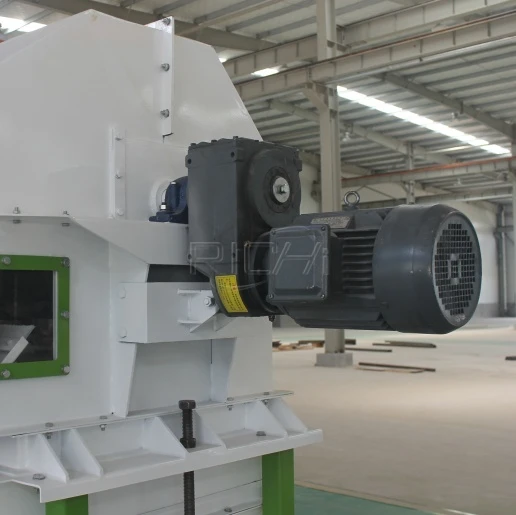

Drive System

The drive system provides all the muscle to lift tons of material vertically. Our bucket elevators use high quality motors and gearboxes that deliver steady power without wasting energy. The drive is usually mounted at the head for better pulling force and easier maintenance access.

It starts up smoothly to avoid putting too much stress on the belt or the motor itself. You get a reliable push that never quits on you during a busy shift. It is the powerhouse that keeps your grain moving.

Learn More

Head Section

Belt Chain

Boot Section

Machine Casing

Drive System

Bucket Elevator Technical Parameters

The technical data for the bucket elevator conveyor highlights its high-capacity vertical transport and space-saving design. This ensures an efficient upward movement of bulk materials within a compact footprint, maintaining a continuous and reliable flow for high-rise production layouts.

Model	TDTG36/18	TDTG36/28	TDTG40/23	TDTG63/28
Power (kW)	≤4	≤7.5	≤11	≤37
Output (TPH)	6-15	15-30	25-35	80-100
Head diameter (mm)	360	360	400	630
Line Speed of Bucket Belt (m/s)	1.6	1.6	1.78	2.67

Operational Principles of Bucket Elevator

Our TDTG bucket elevator for sale lifts your grain straight up with high speed and zero fuss. It works fast. The system combines a heavy duty belt with reinforced buckets to move massive volumes in a tiny footprint. You get a reliable vertical lift that keeps your production climbing without wasting a single inch of floor space.

Free Consultation

Vertical Material Intake

The grain enters the boot at the base of the elevator and flows directly into the path of the moving buckets. It fills up fast. Each bucket scoops the material with precision as the belt loops around the bottom pulley. This steady feeding action prevents surges and keeps the system from choking even during peak hours. You get a smooth start to the vertical journey that maximizes every inch of the lifting belt for top tier efficiency.

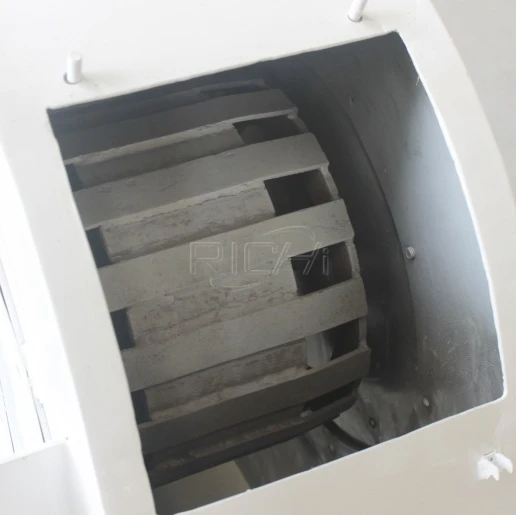

High Velocity Centrifugal Discharge

The top pulley spins at the perfect speed to launch the grain into the discharge spout using centrifugal force. It’s all about timing. As the buckets reach the head section, they flip the material forward in a clean arc that avoids any back-legging or spills. This smart engineering keeps the grain moving toward the next machine instead of falling back down the shaft. The grain bucket elevator ensures that every kernel makes it to the top without taking a second trip.

Heavy Duty Belt and Bucket Synergy

A high strength rubber belt carries the weight of the loaded buckets through the entire vertical casing. It stays tough. We bolt the reinforced buckets firmly to the belt to handle the constant stress of heavy lifting day in and day out. This setup won’t stretch or slip. The tight grip between the pulleys and the belt keeps the movement stable so you don’t have to deal with annoying vibration or mechanical noise during operation.

Sealed Casing and Dust Management

The vertical trunking boxes seal the entire process inside a dust tight environment from the floor to the ceiling. It keeps the air clean. This enclosure stops grain dust from leaking out and creating a mess or a fire hazard in your facility. You can breathe easy. The smooth internal walls prevent material from getting stuck in the corners and rotting over time. It protects your grain quality while keeping your maintenance crew happy and your site safe.

FRONT

BACK

Key Advantages of Bucket Elevator

We know how much a messy workshop can slow you down so we built the vertical bucket conveyor to make your vertical lifting smooth and clean. It is honestly the best partner for your daily factory goals.

Clean Operation

The system is built to keep your factory floor spotless from morning until night. Its fully sealed design stops dust from escaping into the air while the material moves. You get a much safer environment for your workers and save hours on daily cleaning.

It handles high volumes of feed without leaving a mess or creating any extra waste. This is the perfect solution for any plant that values a tidy and professional workspace. You can focus on your production goals while the air stays clear and fresh.

Smooth Transport

Lifting heavy materials vertically is easy and reliable with this bucket conveyor system. The flow is steady and consistent so you never have to deal with sudden bottlenecks. It works quietly in the background without causing any vibration or loud metallic noises.

Your whole production line will run much smoother when the material moves this easily. It keeps your output high and ensures that every batch reaches its destination on time. This steady pace helps you manage your daily schedule with zero stress.

Zero Material Waste

We focused on making sure almost nothing is left behind inside the bucket elevator after use. The smart boot design keeps the bottom clean so you can switch batches very fast. This is a huge advantage if you work with different types of feed and fear mixing them.

You get more finished product out of every single run and spend less time on manual checks. It protects your feed quality and makes your whole operation much more profitable. Every grain is saved so your bottom line stays healthy.

Lower Running Costs

The equipment is designed to be tough and requires very little power to move heavy loads. You will notice a drop in your energy bills compared to using older or less efficient gear. The parts stay in good shape for a long time which means fewer repairs and less downtime.

It is a smart investment that pays for itself by keeping your maintenance costs very low. You can focus on growing your business while this bucket elevator handles the heavy lifting. It is built to last for many years and stays strong for your busy team.

FRONT

BACK

Global Case Study

We have helped so many partners set up their bucket elevator systems to handle vertical lifting without any stress. We love finding the right fit for your specific feed plant goals. Take a look at these real success stories from our friends around the globe.

Animal Feed Mill Project in Thailand

A busy feed plant in Thailand was struggling with a lot of dust during their peak hours. They needed a vertical solution that could keep the air clean and the grain moving fast. We installed several elevators with tight seals to stop the leaks once and for all. The team noticed a huge difference in their workshop air quality within the first few days. It made the entire factory a much safer place for everyone to work. They are now running at full capacity without any of the old mess.

View More Cases

Large Farm Project in Kazakhstan

This large farm in Kazakhstan needed to move tough grains during the freezing winter months. They were worried about the belts snapping or getting stuck when the temperature dropped low. We provided them with heavy duty components that are built to handle the most harsh weather. The bucket elevators have stayed on track through several seasons without any breakdown. It gives the owners peace of mind to know the lifting system is reliable. They can focus on their livestock while the grain flows.

View More Cases

Feed Pellet Production Line in Brazil

A large scale project in Brazil wanted to reduce the amount of broken pellets during transport. They had been losing a lot of money because of poor handling in their old system. We adjusted the head section of our bucket elevators to ensure a much gentler discharge for every bucket. This simple change kept their product intact and significantly improved their final market value. They are very happy with the results and the extra profit they see. It proves that small details in engineering can make a massive financial difference.

View More Cases

Feed Processing Plant in Poland

Our partners in Poland required a very tall elevator to fit into their new vertical storage silos. Space was tight and the deadline for the installation was approaching very fast. We delivered a modular casing system that their local team could assemble and bolt together with ease. The whole unit was up and running ahead of schedule which saved them a lot of time and labor. It has been working perfectly under heavy loads for over a year now. They told us it is the most reliable machine in their whole plant.

View More Cases

FRONT

BACK

Application Scope of Bucket Elevator

Industrial bucket elevators are a specialized solution for the vertical lifting of bulk materials in many processing industries.This auxiliary equipment fits various production stages to ensure efficient and vertical transport of raw materials and finished products across different floors.

Industry Applications

Feed Processing Plants: Used for vertical lifting of raw materials in poultry and aquatic feed lines. This machine fits receiving and dosing sections to move grains or powders into high storage bins or mixers.

Grain Storage Units: Applied in cleaning and storage sections of large-scale grain processing plants. System works at intake areas to lift bulk corn or wheat into tall silos or pre-cleaning equipment.

Biomass Pellet Lines: Used for material lifting in wood chip and straw pellet production lines. It fits stages of biomass processing to handle vertical material flow in limited floor space environments.

Target Animals

Livestock & Poultry Feed: Specifically used for lifting finished pellets for pigs, chickens, and ducks. Application fits feed lines requiring vertical transport to maintain high capacity in multi-story factories.

Ruminant & Aquatic Feed: Applied in transport of nutritional feed for cattle, sheep, fish, and shrimp. System handles vertical movement for various farm animals and aquaculture species in commercial plants.

Specialty Pet Food: Used in production lines for premium dog and cat food pellets. It fits final packaging or storage stages to ensure clean vertical transport of finished pet food.

Raw Materials

Grain & Powder Materials: Handles common ingredients like corn, wheat and feed powders. Bucket elevator fits vertical lifting of dry materials during initial cleaning and final processing stages.

Finished Feed Pellets: Used for lifting cooled pellets and granulated products after pelleting. It is the main choice for vertical transport of finished goods to packaging or loading bins.

Biomass & Fiber Materials: Supports lifting of organic materials like wood chips, straw, and biomass pellets. Application covers fibrous and granular materials in energy and agriculture production sectors.

FRONT

BACK

Buyer’s Guide & Support Center

All your questions are answered here! Below are answers to frequently asked questions about the bucket elevator, providing you with comprehensive answers.

Does the bucket conveyor consume a lot of electricity for vertical lifting?

→

No, the machine is actually very efficient. While keeping the bucket elevator price highly competitive, we use a premium imported direct-drive motor and a high-quality reducer to make sure all the power goes into lifting your material. The design is balanced so it doesn’t waste energy fighting friction or weight. You can move tons of grain to the top of your silos without worrying about a huge jump in your power bill.

Which parts of the machine will I need to replace eventually?

→

The parts that work the hardest are the buckets and the heavy-duty belt or chain. We use tough, wear-resistant materials for the buckets so they don’t crack under heavy loads. You just need to check the belt tension every now and then and make sure the buckets aren’t getting loose. Simple maintenance like this keeps the machine running smoothly for years.

Is there a risk of dust explosions or fires with this equipment?

→

We take safety very seriously with the machine. The whole casing is dust-tight to keep your workshop air clean. We also include explosion relief vents and sensors that watch the belt speed. If the belt slips or the machine starts to get too hot, the system can shut down automatically to prevent any accidents.

Can this machine lift both fine powders and large pellets safely?

→

Yes, it handles a wide range of materials with no problem. The buckets are shaped to scoop up fine powders and heavy pellets equally well without spilling them. As one of the professional bucket elevator manufacturers, we can even customize bucket materials or belt types, and also offer z type bucket elevators to perfectly match the items you want to lift. This ensures you get a clean drain on top every time.

Is it a pain to clean or fix the buckets inside the tall tower?

→

Not at all. We put large inspection doors at the bottom and the top of the machine so you can get inside easily. There are also sections along the middle that you can open up for maintenance. Changing a damaged bucket or cleaning out the bottom of the elevator is a quick job that won’t stop your production for long.

Can I install this bucket elevator in a tight space outdoors?

→

Absolutely. One of the best things about this machine is that it takes up very little floor space because it moves everything straight up. It is built with weather-proof steel, so it works perfectly fine outside in the rain or sun. We can build it to whatever height you need to reach your tallest storage bins or silos.
