chicken manure pellet machine

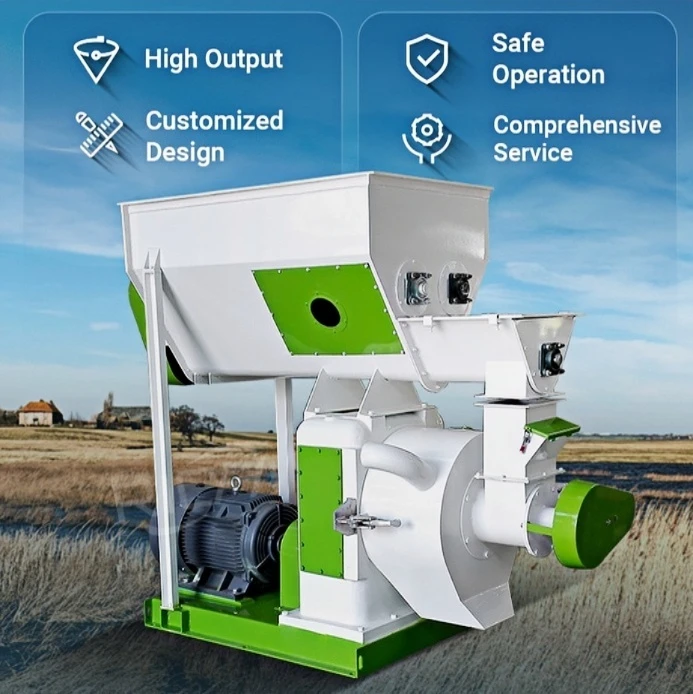

Professional Chicken Manure Pellet Machine for Organic Fertilizer Production. Turn chicken manure into wealth? RICHI chicken manure pellet mill processes fermented chicken and cattle manure into dense, uniform pellets. Turn your farm waste into high-quality commercial fertilizer efficiently.
Product Overview

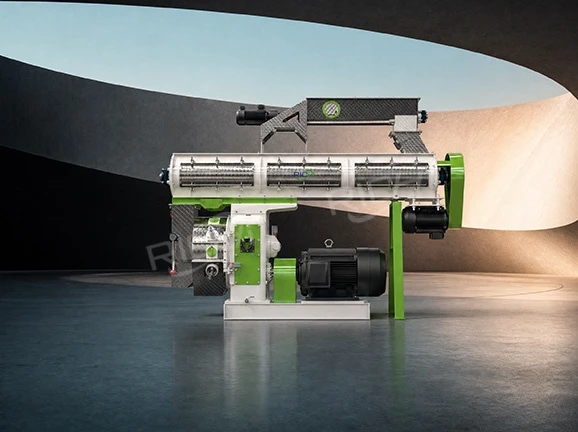

RICHI FZLH series chicken manure pellet machine combines the two core designs of forced feeding and quick-change ring die technology to effectively solve the problem of difficult feeding of light and fine powder and meet the production needs of multi-specification pellets.
The equipment converts chicken manure and other livestock and poultry manure into organic fertilizer particles with better fertilization effect, which can cover the needs of all scenarios from farm supporting to commercial organic fertilizer production.
Capacity: 1-26 T/H
Power: 22-250 kW

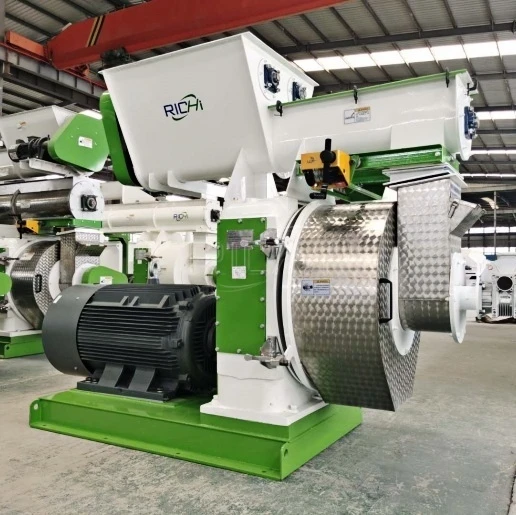

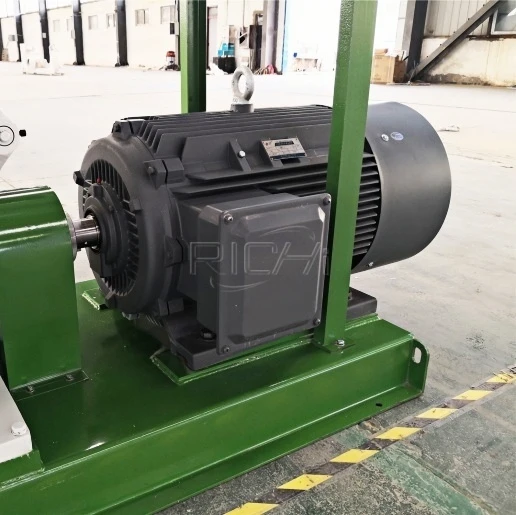

Chicken Manure Pellet Machine Equipment Structure
We focus on structural optimization and modular design, making every part work together so material flows smoothly from feed to discharge.
Technical Parameters
Our chicken manure pellet machine calculates the following data based on the rated output of the production line. However, actual output may vary slightly due to material moisture, raw material type, and operating skill level.
| Model | FZLH250 | FZLH320 | FZLH350 | FZLH420 | FZLH520 | FZLH678 | FZLH768 |
|---|---|---|---|---|---|---|---|
| Main Motor Power (kW) | 22 | 22 | 37 | 90 | 132 | 200 | 250 |
| Arch Breaker Feeder Power (kW) | 2.2 | 2.2 | 2.2 | 3 | 3 | 3 | 4 |
| Forced Feeder Power(kW) | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 | 1.5 |
| Ring Die Inner Diameter (mm) | 250 | 320 | 350 | 420 | 520 | 673 | 762 |
| Finished Pellets Diameter (mm) | 4-12 | 4-12 | 4-12 | 4-12 | 4-12 | 4-12 | 4-12 |
| Production Output (TPH) | 1-1.5 | 2-3 | 3-5 | 6-8 | 9-12 | 18-22 | 22-26 |
Explore Chicken Manure Pellet Machine in Action
The FZLH serieschicken manure pellets machine converts powdery materials into granules through the principle of ring die extrusion. Its operation is divided into three key links, and each link works closely together to produce high-quality organic fertilizer particles from loose powdered chicken manure raw materials.
PREV
NEXT
Why Choose RICHI Chicken Manure Pellet Machine
The FZLH series chicken litter pellets processing machine deeply integrates our more than 30 years of engineering practice and technological innovation, has higher structural strength and operational efficiency, and has won the trust of customers in more than 140 countries and regions around the world.
PREV
NEXT
Global Chicken Manure Pellet Machine Cases
RICHI chicken manure pelletizers have been operating stably in customer factories in more than 140 countries and regions around the world. For more than 30 years, we have accumulated rich experience in the field of organic fertilizer pellet production machinery and equipment.

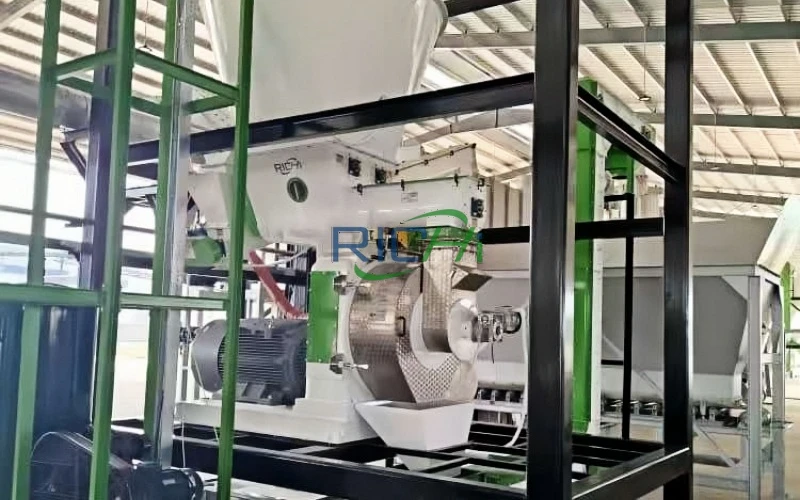

FZLH678 Large Chicken Manure Pellet Machine in Poland
We designed and delivered a bio-organic fertilizer production line for this large agricultural group in Poland that can process 100,000 tons of chicken manure per year. It uses 50% high-humidity chicken manure as raw material and is equipped with an FZLH678 large-scale granulator and a complete set of fermentation, crushing, cooling, and screening systems. The customer was very satisfied: “It helped us solve a big environmental problem.”

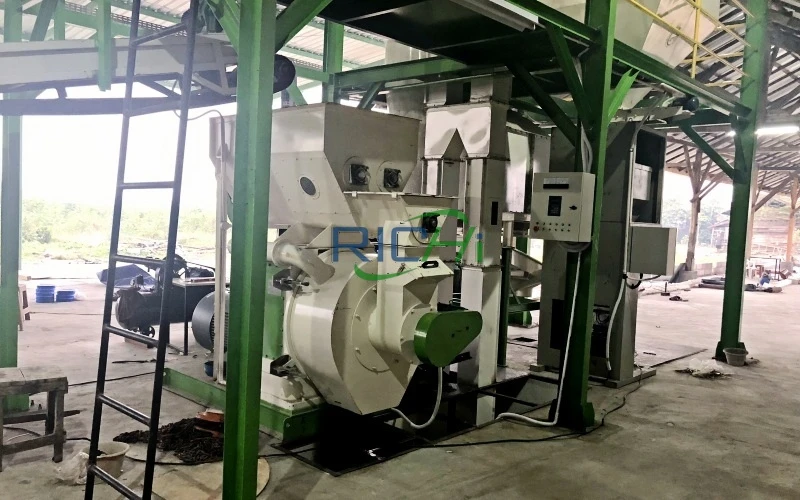

FZLH520 Chicken Manure Pellet Machine in New Zealand
The farmers’ cooperative in the Canterbury region of New Zealand needs to deal with the mixed manure from local dairy, sheep and poultry farms, and due to year-round farming, the organic matter in the land has fallen heavily. We have customized an integrated organic fertilizer granulation production line, equipped with FZLH520 granulator, which uses aerobic fermentation technology to mix chicken manure, sheep manure, and cow manure into granular organic fertilizer, with an annual production capacity of 50,000 tons.

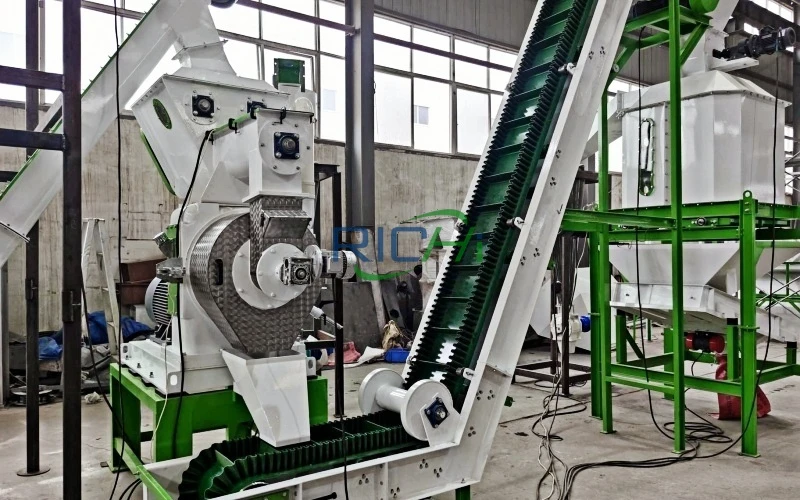

FZLH420 Commercial Chicken Manure Pellet Machine in Uruguay
Faced with the dual bottlenecks of raw materials and sales, we built a modern chicken manure organic fertilizer factory for our Uruguayan customers. Fresh chicken manure and straw are mixed, fermented and granulated through the FZLH420 granulator, and the finished product is accurately matched to surrounding soybean and corn planting areas. With its excellent pellet quality, the factory has won high recognition in the local market.

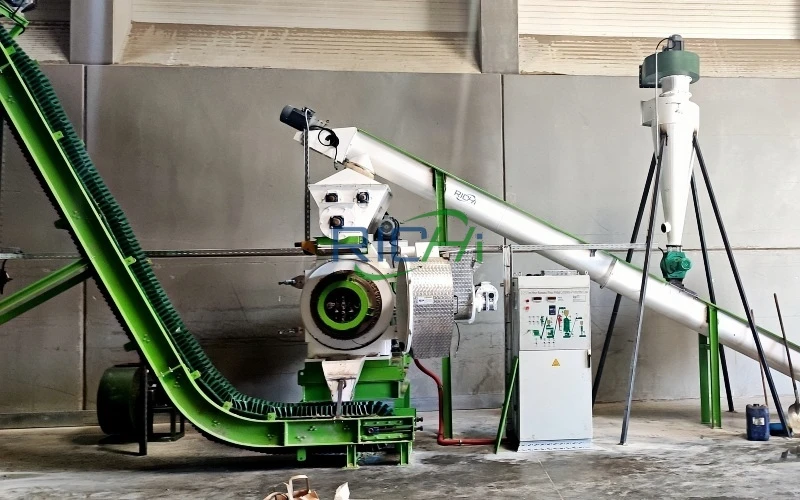

FZLH250 Small Chicken Manure Pellet Machine in Vietnam
In a poultry farm in the Mekong Delta of Vietnam, a large amount of chicken manure has been piled up for a long time, causing serious environmental pollution and odor problems. After comparison, they chose RICHI 1.5 t/h chicken manure organic fertilizer pellet production line, which is equipped with an FZLH250 granulator and rice husk to adjust the moisture content to produce 3-6mm organic fertilizer pellets. This not only meets local demand, but also opens up surrounding markets for customers, and chicken manure has become a stable source of income.
PREV
NEXT
Chicken Manure Organic Fertilizer Production Process Flow
A chicken manure pellet machine can complete granulation, but the complete production line also includes pre-processing and post-processing. If you plan to expand production capacity in the future, understanding the entire process can help you plan ahead. From fresh chicken manure to high-value fertilizer, the standard process is as follows:
Pre-Process Materials

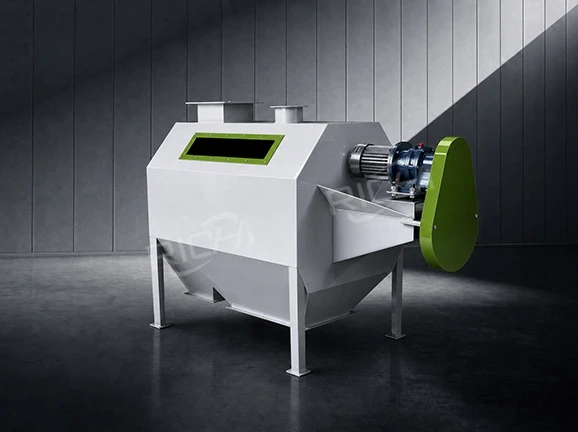

Fresh chicken manure has a moisture content as high as 60%–75%, so we must first use a solid-liquid separator to dewater it. And thoroughly remove feathers, stones and other impurities through cleaning and screening equipment.
This step can effectively optimize the fermentation environment and lay a solid foundation for subsequent efficient processing.
Mix and Ferment

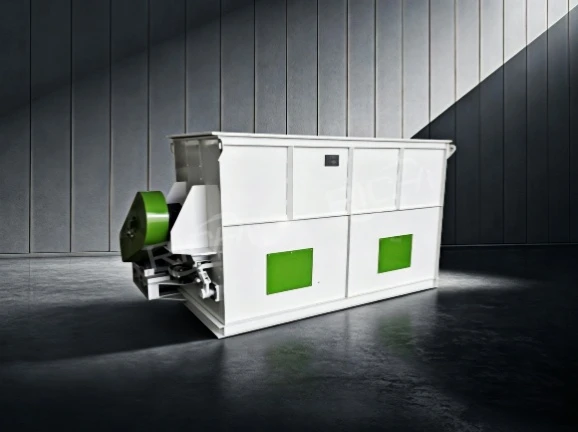

Add auxiliary materials such as straw and rice husk to the initially processed chicken manure to adjust the carbon-nitrogen ratio, and then perform three-stage mixing with a belt mixer.
Afterwards, the material enters the fermentation tank and continues to ferment at a high temperature of 55-70°C for more than 10 days. During this period, the trough-type turning machine regularly turns the pile to provide oxygen to promote the full decomposition and harmlessness of the materials.
Crush and Dry

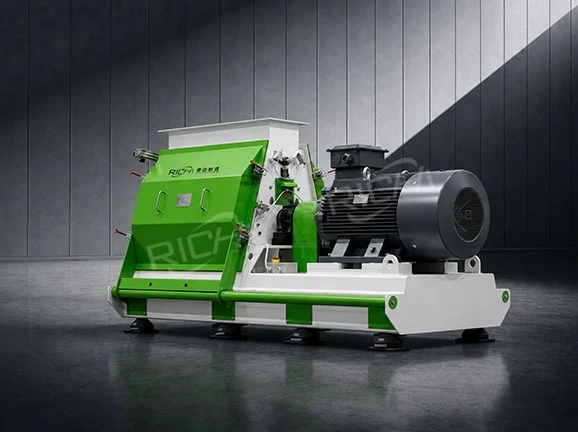

A crusher breaks down the fermented material to remove lumps and improve uniformity. Next, a dryer uses hot air to reduce moisture precisely to 18%-25%.
Reasonable moisture content control is a key link to prevent subsequent equipment from clogging and ensure the particle forming rate.
Make Pellets

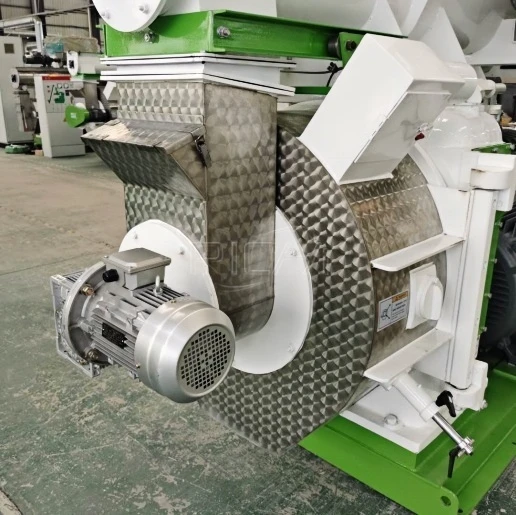

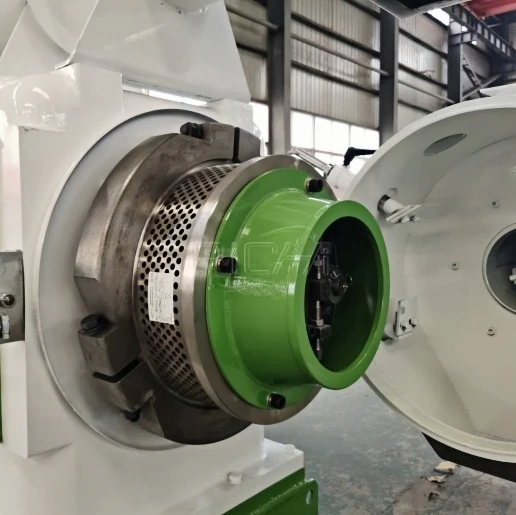

A forced feeder consistently delivers prepared powder into the pelleting chamber of chicken manure pellet machine. Inside, a ring die and rollers compress the material into shape, and a cutter slices it into uniform pellets.
This process transforms loose organic fertilizer into dense granules, significantly boosting bulk density and easing mechanized application.

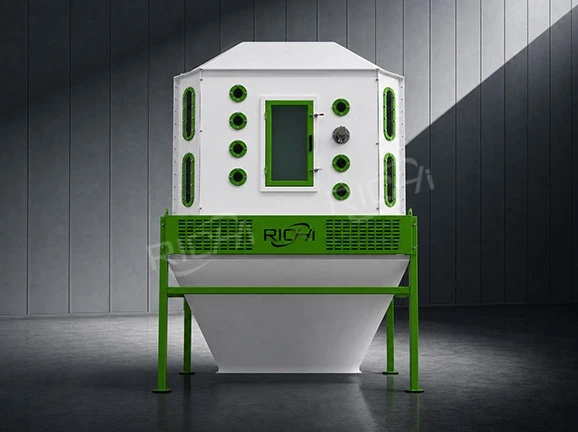

Cool and Screen
Fresh pellets exit the machine at 80-95℃ and immediately enter a cooler. The cooling machine brings them down to room temperature, which releases internal stress, enhances hardness, and prevents caking during storage.
Afterwards, a rotary screener removes oversized or undersized particles to ensure uniform granule size.

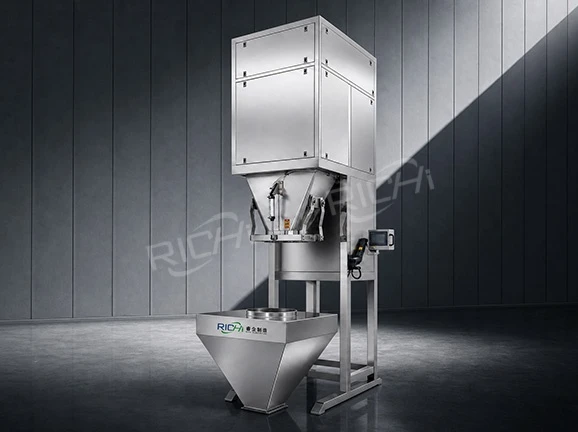

Bag the Product
A belt conveyor delivers qualified pellets to the automatic packing system. The machine precisely fills bags to preset weights, heat-seals, and stitches them for stacking.
The entire packaging process is highly efficient and automated, which not only significantly reduces labor costs, but also ensures the sealing and stable quality of the product during storage and transportation.
RICHI Chicken Manure Pellet Machine Uses
The RICHI FZLH Chicken manure organic fertilizer machines suit small farms and commercial organic fertilizer plants. It covers different industries and raw materials.
PREV
NEXT
Buyer’s Guide & Support Center
Here are common questions about chicken manure pellet machine for sale – covering raw materials, selection, maintenance, export, etc.
What is the best moisture range before pelletizing?
→
Fermented chicken manure should have 18–25% moisture before entering the chicken manure pellet machine.
Too wet: material sticks in the die holes and blocks them. Pellets become loose and do not hold shape.
Too dry: friction increases, energy consumption rises, and die wear accelerates.
If too wet, use a drum dryer. If too dry, add water or sticky additives.
Can I adjust finishedchicken manure organic fertilizer pellet size?
→
Yes. Change the ring die hole size to produce 4–12 mm diameter pellets. Cutter position is adjustable. Pellet length is usually 1.5–2.5 times the diameter. Small pellets (2–6 mm) suit seedling substrates and foliar top dressing. Large pellets (6–12 mm) suit field base fertilizer and mechanical spreading.
How often do I need to replace ring die and roller?
→
Life depends on material abrasiveness and maintenance. High-wear alloy steel with deep carburizing and quenching lasts 8–12 months. Standard materials last only 1–2 months. Clean residual material regularly. Check roller gap. Avoid overload. This extends life.
We plan to export to the EU. Can your organic fertilizer pellets meet EU standards?
→
EU organic fertilizer rules focus on heavy metal limits, pathogen kill rate, and impurity content. RICH chicken manure pellet machine and complete line have CE and other EU certifications. The equipment meets EU market access requirements. More importantly, the pellets also meet EU standards. The aerobic fermentation system strictly controls hygiene. The screening stage removes impurities. Finished products fully meet EU market standards for organic fertilizer.
What daily maintenance is needed?
→
Daily maintenance includes:
1.Clean residual material inside and outside the ring die after each shift to prevent blockages.
2.Check bearing temperature every 50–100 hours. Add high-temperature grease to grease nipples.
3.Check and tighten bolts once a week.
4.Calibrate roller gap once a month.
We can help you set up a maintenance log and replacement plan for wear parts. This greatly extends machine life.
What about your after-sales service?
→
RICHI offers a 12-month warranty on the whole machine. After warranty, we provide lifetime technical support. Repairs only charge for spare parts. Overseas warehouses in major markets. Common parts ship quickly. We also make regular follow-up visits to ensure your chicken manure pellet machine runs well. Contact us anytime for more details.
