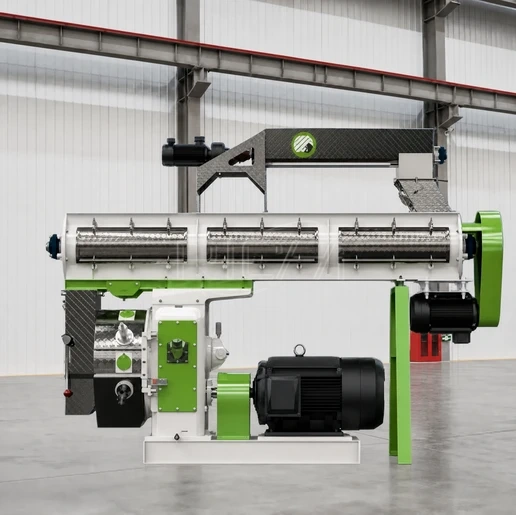

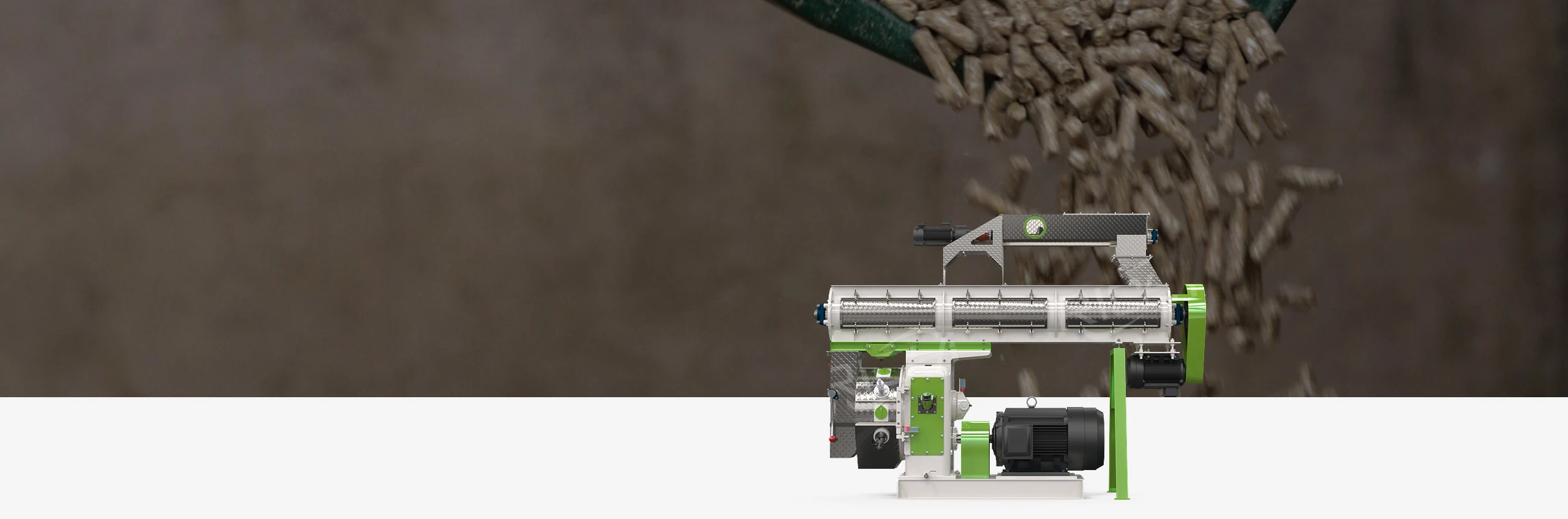

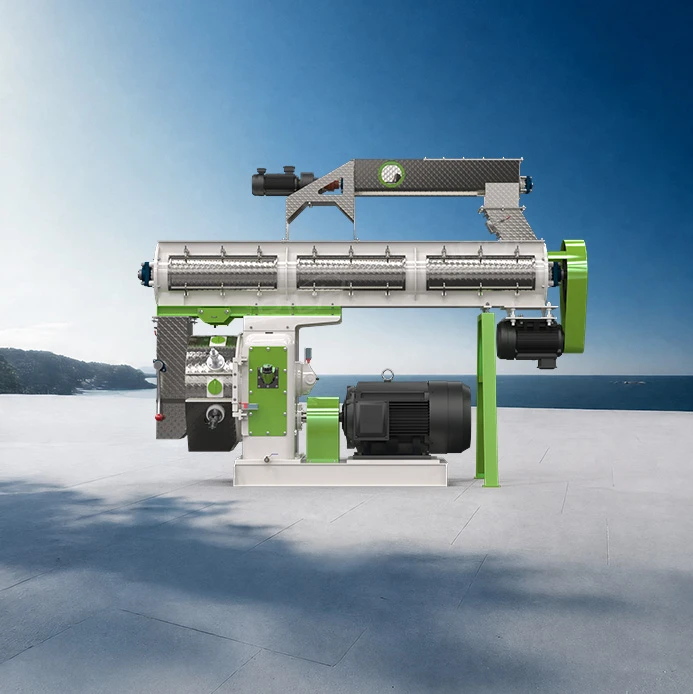

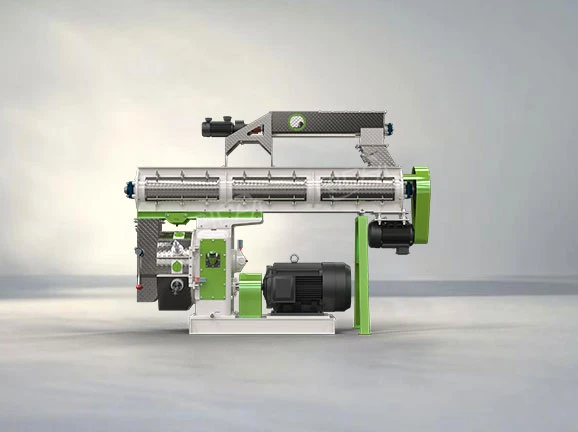

SZLH420 industrial feed pellet machine
SZLH420 Product Overview
RICHI SZLH420 industrial feed pellet machine fits perfectly into medium mills and large farms because the heavy-duty gear system handles 24/7 workloads without any trouble. The smart modular design helps you finish maintenance tasks quickly.
This machine turns grains, grass, or straw into high-quality pellets between 2mm and 12mm to feed different animals. It maintains the right temperature and pressure to create tough pellets so you deal with less waste and better nutrition.
Capacity: 10-12 T/H
Power: 110 KW
Technical Structure of SZLH420 Industrial Feed Pellet Mill
SZLH420 industrial feed pellet machine adopts a heavy-duty mechanical structure. All parts in contact with materials are made of premium high-quality materials. This ensures the equipment is exceptionally durable under extreme high-pressure environments, resulting in a long service life.
Technical Parameters
The listed capacity for the SZLH420 industrial feed pellet machine refers to its rated output under stable conditions. This performance is naturally linked to the raw material processing and dosing steps. These stages ensure the machine receives a steady supply to meet its production goals.
| Model | Capacity(TPH) | Main Motor Power(kw) | Feeder Motor Power(kw) | Conditioner Power(kw) | Dia.of Ring Die(mm) | Final Pellet(mm) |
|---|---|---|---|---|---|---|
| SZLH420 | 10-12 | 110 | 1.5 | 7.5 | 420 | 2~12 |
Operational Principles of SZLH420 Industrial Feed Pellet Machine
The SZLH420 industrial animal feed pellet machine is a high-efficiency machine designed to turn raw powder into high-quality pellets. This model combines stable performance with a simple operation process to meet professional production needs.
FRONT
BACK
Key Advantages of SZLH420 Industrial Feed Pellet Machine
SZLH420 industrial ring die feed pellet machine boasts high output and stable operation, balancing low energy consumption and ease of operation. This high-efficiency machine is designed for large-scale production. It helps users reduce production costs while ensuring feed quality, making it a reliable choice for creating long-term value.
FRONT
BACK
Global Case Study
SZLH420 industrial feed pellet machine is used worldwide across the livestock and aquaculture industries. It handles everything from poultry to ruminant feed with ease. Clients choose it for two main reasons: consistent production capacity and a remarkably low failure rate.
Commercial Feed Mill in Thailand
A commercial mill in Thailand needed a stable way to produce poultry and livestock feed for their market. We set up an automated line using the SZLH420 industrial poultry feed pellet machine to keep their costs low. The output of this production line is stable and the powder content is extremely low, less than 2%. They were very happy with the results. The client actually recovered their entire equipment investment in just eight months. It was a huge win for their local production team.
Large Sheep Farm in Kazakhstan
A large sheep farm in Kazakhstan was struggling with low output because they use a lot of straw and alfalfa. These high fiber materials often cause clogs in weaker machines. We equipped them with high compression stainless steel ring dies to handle the tough ingredients. The SZLH420 feed pellet machine processed the roughage easily and achieved a perfect formation rate of over ninety eight percent. They no longer waste material. Their animals are now getting high quality feed through the winter.
Industrial Pig Farm in Brazil
An industrial pig farm in Brazil wanted to improve their biosafety and save on labor costs at the same time. The SZLH420 large industrial feed pellet machine uses an all stainless steel conditioner to handle high temperature sterilization above eighty five degrees. Combined with our intelligent PLC control system the entire line requires very few people to operate. This setup enhanced their labor efficiency significantly while keeping the pigs safe from disease. It provided the high level of safety they needed.
Poultry Feed Mill in Sri Lanka
The customer operates a local medium-sized feed factory. The original pelleting equipment often breaks down, affecting the feed supply to contract farmers. We recommend the SZLH420 ring die industrial feed pellet machine. After being put into production, production efficiency and pellet quality have been significantly improved, allowing customers to serve more farmers.
FRONT
BACK
Production Process Flow
RICHI offers more than just the high-quality SZLH420 industrial feed pellet machine. We help users build fully automated production lines—from raw material cleaning to final packaging. This ensures every stage is coordinated and operates with maximum stability.
Raw Material Cleaning
Raw materials pass through a primary cleaning screen and permanent magnet drum. This reliable system removes impurities and metal iron filings, successfully preventing potential operation damage during subsequent precision pelleting.
Fine Material Grinding
The hammer mill grinds various raw materials to the most suitable particle size. This optimal material fineness significantly improves steam penetration efficiency and moisture absorption during the next conditioning stage.
Intelligent Feed Mixing
Multi-component raw materials stir rapidly inside the high-efficiency mixer. This advanced process achieves excellent mixing uniformity quickly, ensuring stable and perfect nutritional balance in every single finished pellet.
Conditioning and Pelletizing
The well-matured material uniformly enters the SZLH420 industrial feed pellet machine chamber. The high-performance ring die and roller system completes this intense physical pressing and shaping process instantly.
Counter Current Cooling
The hot pellets exiting the machine enter a specialized counter-current cooler. Consistent airflow uniformly removes excess moisture and heat, safely setting the final pellet hardness for long-term storage.
Screening and Packaging
A vibrating grading screen removes broken fine powder to ensure neat finished pellets. Finally, an automatic packaging scale seals and stores the premium feed into bags efficiently.
Application Scope of SZLH420 Industrial Feed Pellet Machine
With its high-power motor, large-diameter ring die structure, and excellent raw material adaptability, SZLH420 animal feed machine can widely cover high-volume production scenarios, various types of farmed animals, and diverse processing raw materials.
FRONT
BACK
Buyer’s Guide & Support Center
All your questions are answered here! Below are answers to frequently asked questions about the SZLH420 industrial feed pellet machine, providing you with comprehensive answers.
What is the hourly output of SZLH420 machine? Who is it suitable for?
→
The standard capacity sits between eight and twelve tons every hour. It is the core heart of a medium sized production line that makes twenty to fifty thousand tons a year. Modern farms with over ten thousand animals love this setup. You can even run multiple units together for a huge industrial scale factory. It meets the needs of high load work without any trouble. This machine is built to handle the big jobs with ease and steady speed.
Can it process high-fiber raw materials such as straw and forage?
→
Yes this mill handles high fiber materials like straw and alfalfa very well. We enhanced the feeding torque so it can chew through tough oat hay without getting stuck. For these tricky raw materials we customize a special ring die with a specific compression ratio. This ensures you get high density pellets that are not loose or crumbly. You still get top quality even when the fiber content is very high. It is a very versatile machine for different types of feed.
Is SZLH420 pellet machine power-consuming? What are the operating costs?
→
Even though the main motor is a powerful 110KW the operating costs are actually quite low. We use a high precision gear system that is much more efficient than old belts. This means the energy used for every ton of feed is lower than what smaller models consume. You waste very little power during the run. It is a smart investment that saves you cash every single day. Efficient engineering makes the difference for your monthly budget.
Is it complicated to operate? Can ordinary people learn it quickly?
→
Operating this machine is not complicated at all. You can add a PLC system for one button starts and automatic tracking. This lowers the bar for new workers. We provide full manuals and on site training to get your team ready. Most ordinary workers can master the daily operation and basic maintenance in just one to three days. It is designed to be user friendly so you do not need an expert to run it. Everything is simple and very direct.
Can the pellet size be adjusted? What size pellets can it produce?
→
You can easily change the pellet size by swapping out the ring die for a different one. This machine produces pellets ranging from two all the way up to twelve millimeters. Because the chamber pressure is so high the pellets come out very smooth and hard. It works great for large cattle feed or small diameter pellets for fish. You get the same professional finish no matter what size you choose. It gives you the flexibility to serve many different animal markets.
How long is the equipment warranty? Is there after-sales service overseas?
→
The entire industrial feed pellet machine comes with a twelve month warranty for your peace of mind. RICHI has a mature global system with senior engineers for on site setup and commissioning. We also offer remote video guidance if you need a quick answer. We keep parts warehouses in many countries to ship out spare ring dies and rollers fast. You will never be stuck waiting for a part to arrive from far away. We make sure your production line stays up and running.
