Liquid Adding System
Product Overview
The core components of the liquid adding system include gear pumps, weighing sensors, and a PLC control system. It automatically handles filtering, metering, weighing, and pressurized spraying. All materials used are food-grade, and the pipe interfaces are tightly sealed to prevent leaks. It can operate independently or be integrated into a fully automated production line.
Model: SYTC
Power: 2.2-5.5 KW

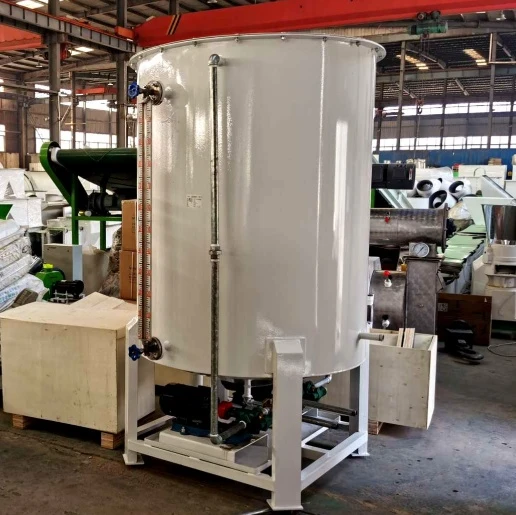

Technical Structure of Liquid Adding System
The professional liquid adding equipment integrates five core modules to deliver precise nutritional supplementation. This streamlined structure ensures highly stable operation and simplifies daily maintenance for your technical team.
Technical Parameters
Our liquid adding system features advanced metering technology for accurate and reliable fluid management. This ensures superior additive distribution, enhancing the nutritional value and consistency of your final products.
| Model | SYTC50A | SYTC100A | SYTC150A | SYTC200 |
|---|---|---|---|---|
| Adding rate（L/Min） | 50 | 100 | 150 | 200 |
| Power（kW） | 2.2 | 3 | 4 | 5.5 |
| Adding precision | 0.50% | 0.50% | 0.50% | 0.50% |
Operational Principles
Our liquid adding system combines high-precision metering technology with advanced atomization controls to ensure the exact infusion of additives into your production line. This integrated solution synchronizes real-time flow monitoring and uniform spraying to optimize nutritional consistency and product quality.
FRONT
BACK
Key Advantages of Liquid Adding System
This automated liquid addition system eliminates the common errors associated with manual feeding processes. High-precision technology improves your total production efficiency while ensuring the nutritional safety of every batch.
FRONT
BACK
Global Case Study
The SYTC series liquid adding system earns wide recognition and serves professional feed mills across many countries today. Our successful global installations prove the high reliability and technical excellence of this automated equipment in diverse environments.
Pig Feed Mill Project in Vietnam
This customer previously struggled with inaccurate fat and molasses addition in their pig feed line to meet local market standards. We installed an SYTC100A system to stabilize the adding accuracy at point five percent quickly. This professional upgrade significantly improved feed palatability for the local market and reduced the pulverization rate. The production line now experiences fewer mechanical failures and lower operational costs per ton of feed. The customer feels very satisfied with the consistent nutritional quality of every single batch produced. Our reliable technology helps them maintain a strong competitive advantage in the Vietnamese agricultural industry.
Aquatic Feed Production Line in Thailand
This customer noticed that phospholipids and micronutrients often clumped during shrimp and sinking fish feed production processes at their main facility. We provided a specialized SYTC50A system featuring our latest high-pressure atomizing nozzles to solve this problem. The liquid now sprays evenly into the powder and the final feed no longer sticks together. This improvement significantly enhanced the stability of the aquatic feed in water for better feeding results. The technical team now manages the production process with much higher efficiency and less manual cleaning. Our advanced spraying solution perfectly meets the strict quality requirements for high-end aquatic feed products.
Cattle and Sheep Feed Production Line in Russia
The customer uses high-viscosity molasses mixed with straw and alfalfa for their cattle and sheep feed. Their previous equipment often suffered from serious pipe clogging which caused many unexpected production stops daily. We recommended the SYTC150A liquid adding system which specifically handles high-viscosity liquids with a powerful heating and pumping design. The entire system now runs smoothly and leaves no sticky residue inside the food-grade pipes anymore. This durable configuration ensures continuous operation even under the challenging conditions of a Russian winter facility. Our professional equipment saves significant maintenance time and prevents material waste for the industrial park.
Feed Plant Project in Brazil
This modern facility required full automation to eliminate leaks and odors during the compound feed production process. We configured multiple SYTC200A systems and integrated them into a centralized PLC control network for the customer. The operators can now switch various formulas automatically and monitor the entire system remotely through the screen. The workshop remains clean and odor-free which meets all local environmental and food safety standards perfectly. This smart installation reduces human error and provides a much healthier working environment for all onsite employees. The project successfully passed the strict international hygiene inspection and earned high praise from the management.
FRONT
BACK
Application Scope of Liquid Adding System
Serving as a vital auxiliary equipment in industrial manufacturing, the SYTC Series liquid addition system is a precise solution for the addition of various liquids. It fits into multiple processing stages including initial mixing and final spraying to ensure the uniform distribution of liquid ingredients.
FRONT
BACK
Buyer’s Guide & Support Center
All your questions are answered here! Below are answers to frequently asked questions about the liquid adding system, providing you with comprehensive answers.
How does the system ensure the liquid adds evenly to the mixer?
→
The system uses high-precision spray nozzles to turn the liquid into a fine mist. This mist covers the material surface thoroughly as the mixer turns. You get a consistent mix without any wet clumps or dry spots. This uniform distribution improves the overall quality of your final product.
Do the spray nozzles clog often and how do I clean them?
→
No, the system includes dual filters to catch any dirt or particles before they reach the nozzles. You can also run an automatic flushing cycle to clear out the pipes after you finish your work. If you need to check a nozzle, the maintenance door provides quick access for a simple manual cleaning.
Is the installation process for this system complex?
→
The installation is very straightforward. We build the entire system on a single integrated metal frame. You only need to place the unit on a flat floor near your mixer. After you connect the power, the liquid supply, and the delivery pipes, the system is ready for testing and operation.
What are the common wearing parts for this equipment?
→
The main parts that require attention are the filter elements, the spray nozzles, and the rubber seals. These parts are made from high-quality materials to last a long time under normal work conditions. You should check them periodically to ensure the liquid flow stays accurate and the pipes do not leak.
Can this system work with different sizes of mixers?
→
Yes, the system is very flexible. You can adjust the flow rate and the spray time to match the capacity of your specific mixer. It works perfectly with small batch mixers or large industrial blending machines. This allows you to use the same addition technology across different production lines.
What kind of technical support do you provide after the sale?
→
We offer a full 12-month warranty on all major components. Our team provides clear instructions for installation and teaches your staff how to operate the controls correctly. We also keep all necessary spare parts for the liquid adding system in stock so we can ship them to your factory immediately if you need a replacement.
