pulse bag filter
Product Overview

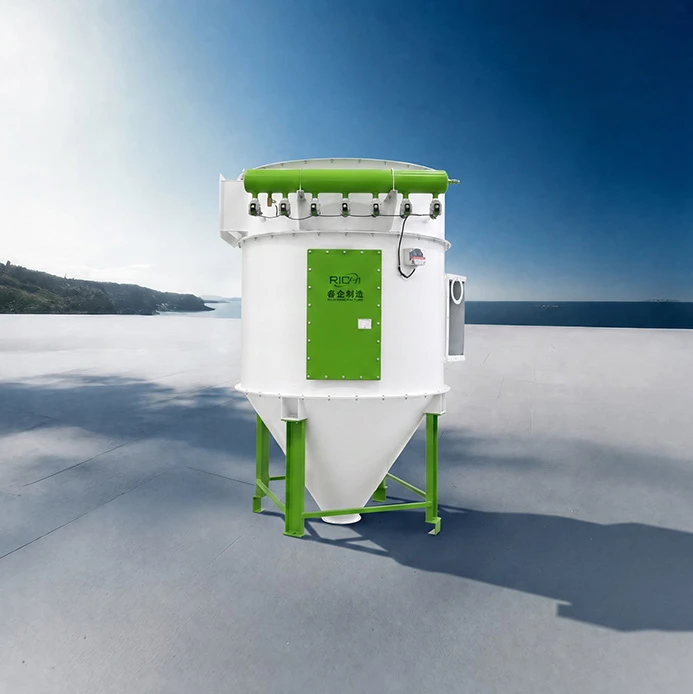

The pulse bag filter fits various production lines for efficient air cleaning. It uses an automatic air-jet system to block over 99.8% of dust. Maintenance is reliable with a high-pressure device and durable filter bags. The machine processes dust-laden airflow into clean air for different factory needs. It ensures 24/7 operation under various capacities, creating a clean environment to reduce pollution.
Model: TBLMa
Power: 0.75-15 KW
Technical Structure of Pulse Bag Filter

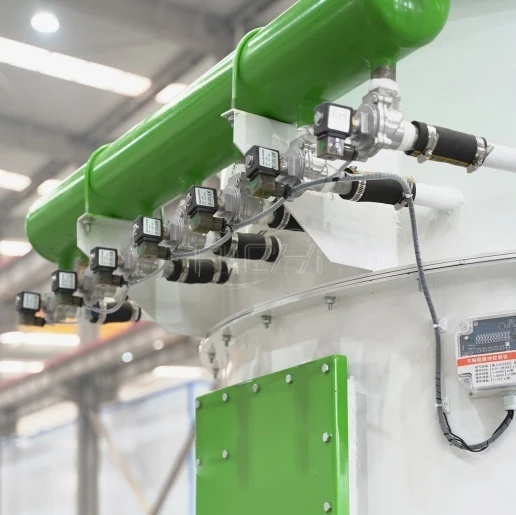

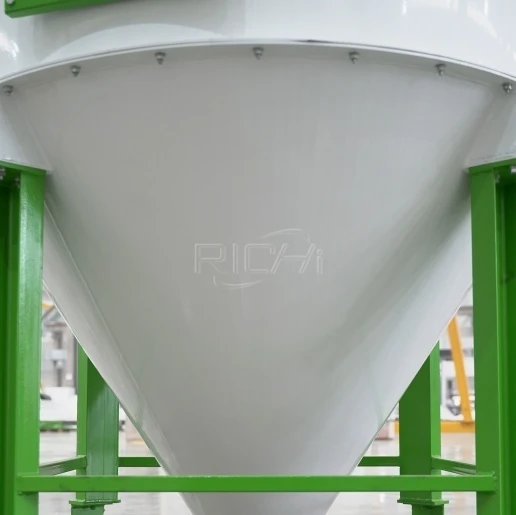

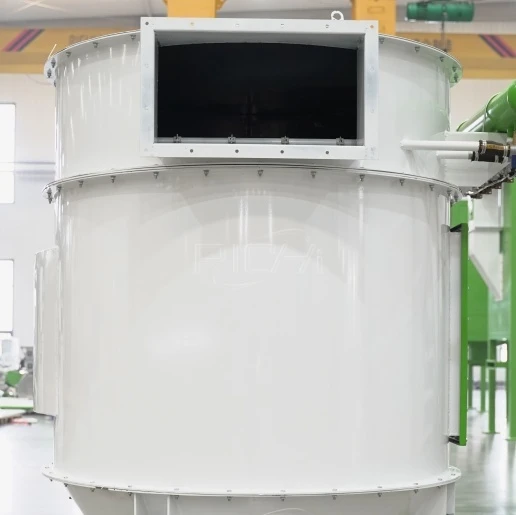

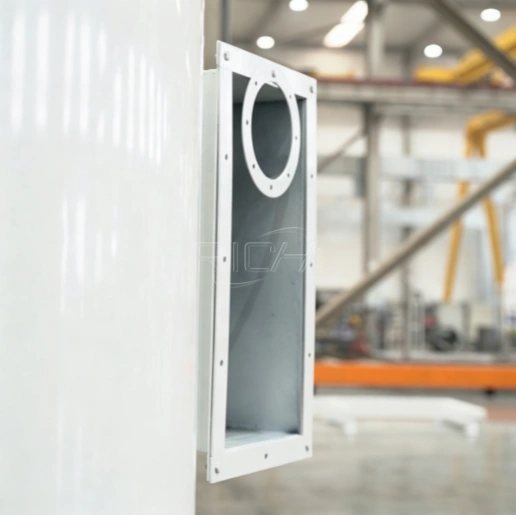

The jet dust collector filter consists of five core components. These parts work together to inhale air, filter dust, clean buildup, collect dust, and discharge clean air. The entire machine has a compact structure and is very reliable.
Technical Parameters
The technical data for the pulse bag filter indicates its high-efficiency filtration and stable performance under continuous operation. This ensures a clean production environment by effectively capturing dust particles across various industrial applications.
| Model | TBLMa.4A | TBLMa.6A | TBLMa.8A/ TBLMa.8B | TBLMa12A/ TBLMa12B | TBLMa18A/ TBLMa18B | TBLMa24A/ TBLMa24B | TBLMa36A/ TBLMa36B | TBLMa48A |
|---|---|---|---|---|---|---|---|---|
| Power | 0.75KW | 1.5KW | 1.5KW | 2.2KW | 3KW | 5.5KW | 11KW | 15KW |
| Number of Filter Bags | 4 | 6 | 8 | 12 | 18 | 24 | 36 | 48 |
| Filtering area（㎡） | 2 | 3 | 4 | 6 | 9 | 12 | 18 | 24 |
| Compressed Air Pressure (Mpa) | 0.5-0.7 | 0.5-0.7 | 0.5-0.7 | 0.5-0.7 | 0.5-0.7 | 0.5-0.7 | 0.5-0.7 | 0.5-0.7 |
| Dust Removal Efficiency | ≥99.8% | ≥99.8% | ≥99.8% | ≥99.8% | ≥99.8% | ≥99.8% | ≥99.8% | ≥99.8% |
Operational Principles of Pulse Bag Filter
The operation of pulse dust collector is a fully automated process designed for high-volume filtration. By integrating an intelligent pressure-pulse mechanism, the system maintains a constant airflow resistance, ensuring that your workshop remains compliant with environmental standards while reducing energy consumption.
FRONT
BACK
Key Advantages of Pulse Bag Filter
The pulse jet type dust collector shows very clear advantages in dust removal effect, stability, environmental protection, and operating costs. It is a highly cost-effective dust removal device for the entire production line.
FRONT
BACK
Global Case Study
RICHI pulse bag filter has gained rich successful experience in many large industrial factories worldwide. These reliable machines effectively solve various complex dust problems and significantly improve the working environment for our global clients every day.
Large Poultry Feed Plant in Thailand
This professional industrial customer produces one hundred thousand tons of poultry feed annually in their local facility. Heavy dust used to fill the crushing and packaging areas before we installed our advanced TBLMa24 model. This powerful machine now reaches an excellent ninety-nine percent removal effect during the whole production process. The workshop stays completely clear of visible dust and the machine has had zero mechanical failures so far. This successful installation effectively protects the health of all onsite workers and ensures a very clean workshop. The management team expressed great satisfaction with the high suction power and stable performance of our unit.
Biomass Pellet Plant Project in the USA
This major customer uses wood chips and dry straw which create large amounts of sticky dust every day. We chose a TBLMa36 pulse bag filter with high-temperature resistant materials to handle these challenging and complex raw materials. The smart machine cleans filter bags automatically without any clogging issues to maintain a high production rate. It currently collects three hundred kilograms of waste dust daily and the total production uptime reaches ninety-eight percent. This reliable filtration system helps the factory save massive maintenance time and reduces the risk of dust explosions. The plant now runs much more safely and efficiently than before with our solid technology.
Aquatic Feed Enterprise Project in Brazil
This specialized customer produces high-quality fish and shrimp feed with very fine and delicate raw materials. We provided a compact TBLMa18 model which uses a fully enclosed method to collect dust with zero leakage. This precise collection process significantly reduces wear on later machines and lowers the total repair costs every year. The clean airflow keeps the internal precision parts of the pellet mills in excellent working condition constantly. Our solid equipment helps the aquatic enterprise meet strict international hygiene standards for their premium export products. This successful cooperation brings huge long-term economic profits and a better brand reputation to their business.
Large Grain Storage Base in Russia
Serious dust problems used to occur during the massive grain handling and storage process in this large base. We connected multiple TBLMa.8A pulse bag filters into a smart network to process dust from all various locations simultaneously. Dust levels now meet the strict local environmental standards and the grain stays safe from any secondary contamination. This integrated filtration solution provides a stable and healthy working environment for the entire operation team. The automatic discharge system makes it very easy for workers to manage the collected waste materials efficiently. This large-scale project demonstrates the excellent reliability and adaptability of our industrial dust collection systems.
FRONT
BACK
Application Scope of Pulse Bag Filter
Our pulse dust collector serves as auxiliary equipment and provides an essential solution for maintaining a clean environment in modern factories. It effectively removes fine particles during high-speed production to protect your workers and your equipment.
FRONT
BACK
Buyer’s Guide & Support Center
All your questions are answered here! Below are answers to frequently asked questions about the pulse bag filter, providing you with comprehensive answers.
What is a pulse dust collector used for and how does it work?
→
It is a high-efficiency filtration device used to remove fine dust from industrial air streams to ensure environmental compliance. The “pulse” aspect refers to the high-pressure compressed air that is periodically injected into the filter bags; this sudden blast creates a shockwave that shakes off accumulated dust, ensuring the machine maintains high suction power without manual intervention.

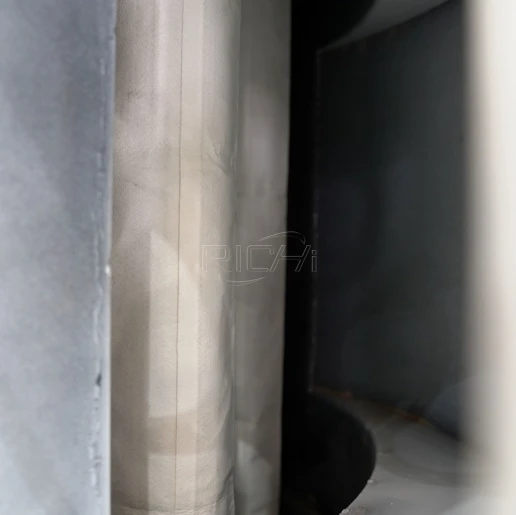

How often should I change the filter bags, and what materials are available?
→
Generally, bags should be replaced every 1 to 2 years depending on the dust load and operating environment. We offer a variety of materials including polyester felt, PTFE membranes, aramid, and anti-static fabrics. This range allows the collector to handle everything from standard ambient temperatures to high-heat or highly explosive environments effectively.
Does the pulse bag filter support 24-hour continuous operation?
→
Yes, it is designed for heavy-duty industrial use. The pulse-jet cleaning system operates automatically via a timer or pressure sensor while the machine is running, meaning there is no downtime required for cleaning. This makes it an ideal choice for integration into full-day production lines where constant airflow is critical.
What daily maintenance is required for a pulse dust collector?
→
Daily tasks include checking the dust hopper for clogs and monitoring the pulse valves and air tank pressure to ensure the cleaning cycle is active. You should also periodically inspect the fan for unusual vibrations and check the seals for air leaks. Regular monitoring helps prevent minor issues from turning into costly mechanical failures.
Can the equipment be customized for explosion-proof or anti-corrosion needs?
→
Absolutely. We can customize the unit with explosion-proof motors, anti-static filter media, and certified pressure relief panels for handling hazardous dust. For corrosive environments, we apply specialized chemical-resistant coatings or use stainless steel components to ensure the equipment’s longevity and safety in harsh conditions.
Is installation complex, and does it need a special foundation?
→
No special foundation is required; the pulse bag filter features a self-supporting bracket that can be bolted to any level, reinforced concrete floor. The setup process is straightforward, requiring only the connection of power, compressed air lines, and ventilation ducting. Most units can be fully commissioned and operational within 1 to 2 days.
