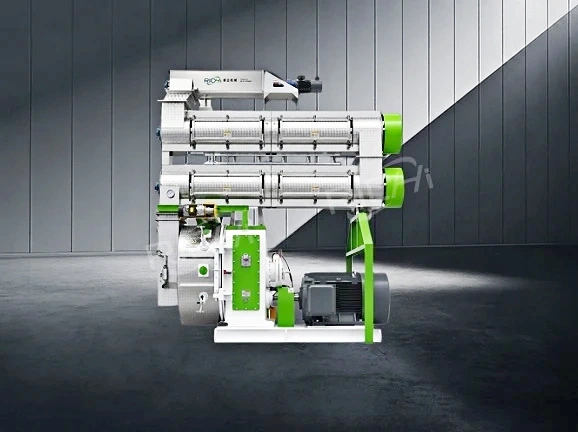

0.5–40 T/H Rabbit Feed Pellet Mill

Is your rabbit a picky eater, leading to excessive waste? RICHI rabbit feed pellet mill is specially designed to solve your worries. This animal feed pellet machine boasts a production capacity ranging from 0.5 to 40 t/h, with pellet sizes from 1 to 12 mm, easily covering the entire feeding stage—from young rabbits to breeding stock.

Product Overview

The RICHI rabbit feed pellet mill is specially designed to match the physiological characteristics of rabbits, efficiently and reliably processing ingredients such as corn, protein supplements, and crude fiber into nutritionally balanced feed pellets. The equipment comes standard with a Siemens industrial motor and SKF bearings, and its key components support quick disassembly and assembly.

This feed pellet machine can produce not only rabbit feed but also feed for poultry and livestock such as chickens, ducks, cattle, and sheep. If you’re looking for a reliable manufacturer of animal feed pellets, feel free to contact us.

Capacity: 0.5-40 T/H

Power: 22-315 kW

Consult Price and Service

Technical Structure of the Rabbit Feed Pellet Mill

High-fiber ingredients like alfalfa, straw, and hay are often tricky to process. The RICHI rabbit pellet maker uses a heavy-duty ring-die system to handle them with ease. Every component is carefully engineered to work reliably across different production environments.

Customize My Machine

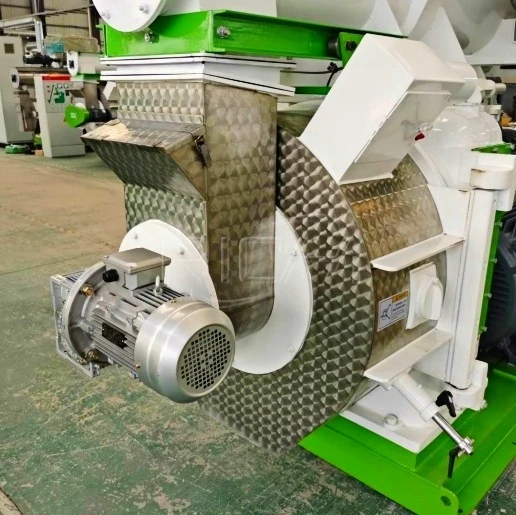

Feeding System

The rabbit feed pellet mill features both forced feeding and variable-frequency drive. This combination feeds light materials steadily into the feeder. You can also adjust the feed rate.

That prevents overloading and jamming, and also avoids wasted power from running too slow. The feeding design keeps your production line smooth.

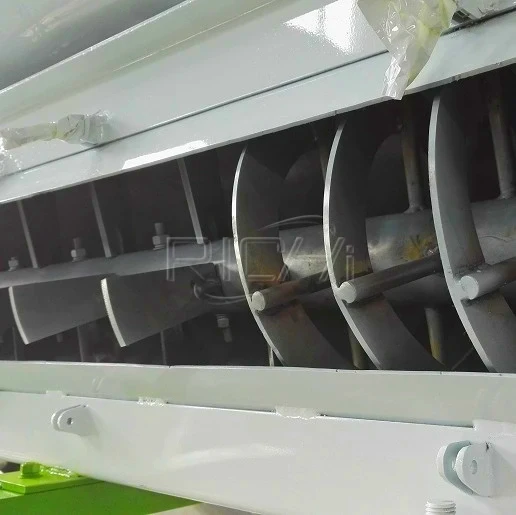

Conditioning System

Conditioning cooks, gelatinizes, and sterilizes the raw materials. RICHI’s conditioner is longer and wider than standard units on the market. Its stainless steel shell resists steam corrosion and material impact during high-temperature conditioning. The forged paddles have adjustable angles, so you can mix ingredients thoroughly.

Pelletizing System

The pelletizing system includes a stainless steel ring die, rollers, deflector, cutter, and other parts. The ring die is made of wear-resistant alloy steel, through-hardened with deep carburization for a longer service life. Die diameter and cutter position are both adjustable.

With a rabbit feed pellet mill, you can manufacture feed pellets of varying sizes to suit rabbits in all growth stages.

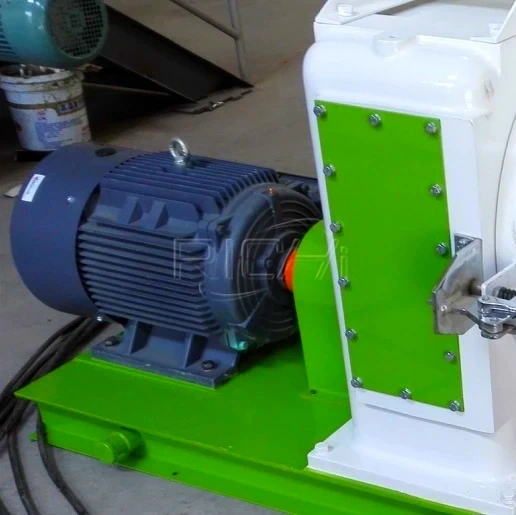

Driving System

The rabbit feed pellet making machine uses Siemens motors – more power, lower energy consumption. They drive feeding, conveying, and pelletizing smoothly.

Instead of traditional belt drives (which slip and waste energy), we use a gear transmission. That eliminates slipping completely. Combined with industrial-grade bearings and a heavy base, the machine delivers stable, reliable operation.

Feed System

Condition System

Pellet System

Drive System

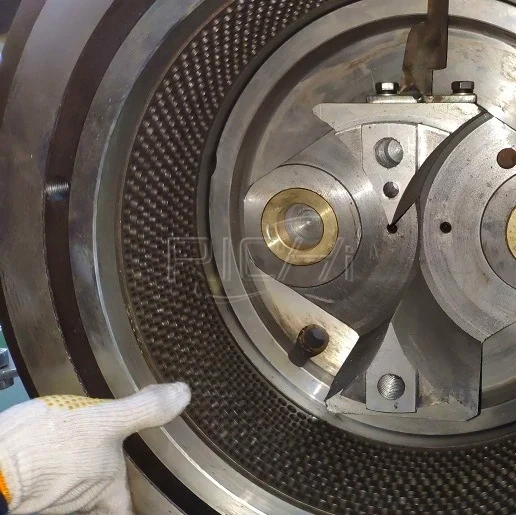

rabbit feed pellet mill ring die and cutting system

Rabbit Feed Pellet Mill Parameter Table

These technical parameters are obtained from the rated operation of the rabbit pellet making machine in a complete production line. Our animal feed machine production capacity covers 1-40T/H, and can reach a maximum of 100T/H. Please contact us to get started on your customized machine.

Model	SZLH250	SZLH320	SZLH350	SZLH420	SZLH508	SZLH558	SZLH678	SZLH768
Main Motor Power (kW)	22	37	55	110	160	185	250	315
Feeder Power (kW)	1.1	1.5	1.5	1.5	1.5	1.5	1.5	2.2
Conditioner Power (kW)	1.5	4	4	7.5	7.5	11	11	11
Ring Die Inner Diameter (mm)	250	320	350	420	508	558	673	762
Finished Pellets Diameter (mm)	2-12	2-12	2-12	2-12	2-12	2-12	2-12	2-12
Production Output (TPH)	1.0-1.5	3-4	5-6	10-12	15-16	20-22	30-33	38-40

How the Rabbit Feed Pellet Mill Makes Pellets

This video shows the appearance and pelleting process of the rabbit feed pellet machine, as well as the display of finished pellets, so you can see with your own eyes how our machine operates.

Free Consultation

Conditioning the Raw Materials

First, feed the mixed powder (corn, protein, roughage) into the conditioner of the rabbit feed pellet mill. Saturated high-temperature steam softens the fiber and cooks the mix. Proper conditioning kills harmful microorganisms and distributes nutrients evenly.

Extruding into Cylinders

Next, the conditioned material enters the pelleting chamber. It gets squeezed between the ring die and rollers. Under pressure, the material is forced into the die holes and extruded continuously, forming cylindrical strands.

Uniform Cutting

Typically, pellet sizes are 1–3 mm for young rabbits, and 4–6 mm for adult and grower rabbits. You can adjust the cutter assembly of the rabbit feed pellet mill. Changing the distance between the cutter and the die surface gives you the exact pellet length you need.

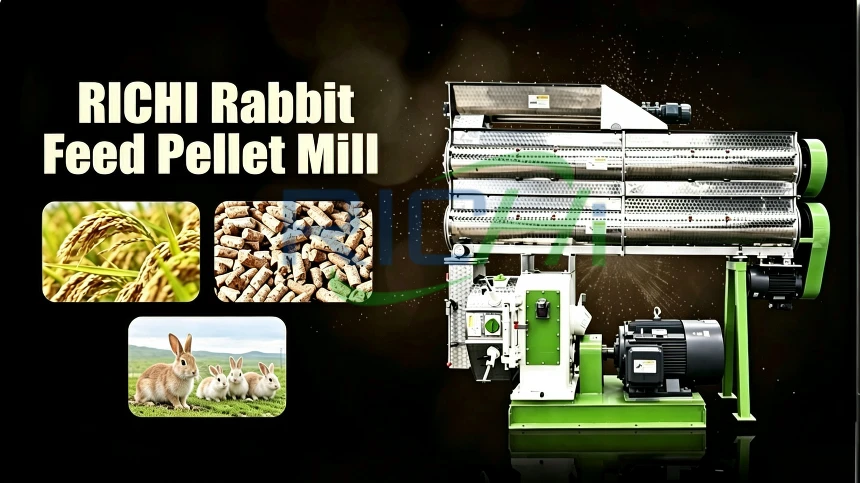

rabbit feed pellet mill pelletizing video bg

Why RICHI Rabbit Feed Pellet Mill Stands Out

This is a feed pellet machine that is truly designed according to the dietary characteristics of rabbits. We pay attention to the differences between rabbits of different types and different growth stages, and specially designed this rabbit food pellet maker with superior performance.

Flexible Production

This machine knows what rabbits like. Whatever formulation you need for different breeds, the mill handles it.Whatever pellet size suits each growth stage, the machine delivers it.

Use the rabbit feed pellet making machine on your own farm for small-scale output, or in a full production line for larger volumes.

Efficient and Worry-Free Pelleting

All main motors are Siemens, matched with gear-driven transmission boxes that don’t slip. Transmission efficiency improves by about 15%.

The modular design lets you swap out ring dies and rollers independently. That cuts downtime for maintenance.

You can also add hydraulic systems and automatic lubrication to save even more labor.

Better Pellets, Less Waste

The conditioner stands out – longer and wider than most, with stainless steel housing and adjustable forged paddles.

Many standard conditioners have only one layer. Ours can have two or three. So ingredients heat evenly, mix thoroughly, and cook more completely.

As a result, pellets have balanced nutrition, better palatability, and much lower fines (powdering) rates.

Safe and Durable

Core components use wear- and corrosion-resistant alloy steel. The heavy-duty frame and high-strength vibration pads reduce impact and wear on critical parts during operation.

A safety interlock sits next to the pelleting chamber. If pressure or resistance exceeds limits, the rabbit feed pellet mill shuts down automatically. So it’s safe and built to last.

Customer Success Stories

RICHI rabbit feed pellet mills are popular with rabbit farms and feed mills. To date, customers in over 140 countries and regions use our equipment.

Match My Project

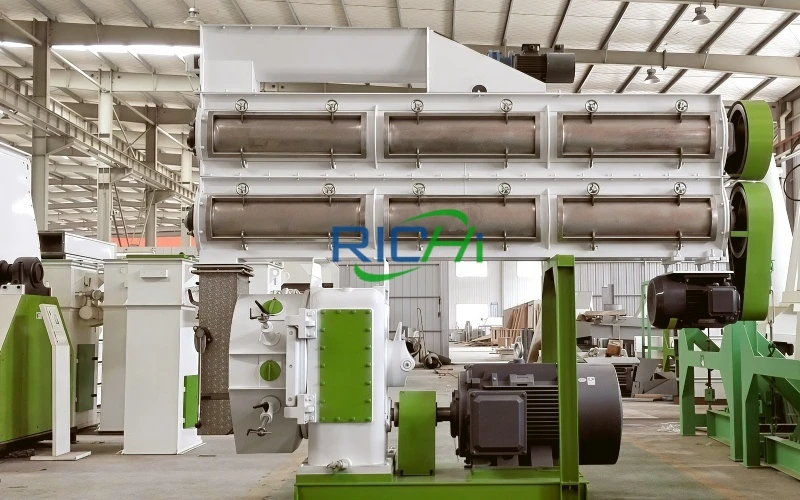

commercial rabbit feed pellet mill in spain

Commercial Rabbit Pellet Machine in Spain

Our client runs a dedicated rabbit feed factory. They needed a stable production line. Local ingredients include alfalfa meal, corn, and soybean meal. We recommended the SZLH420 rabbit feed pellet mill with a double-layer conditioner to handle the high-fiber content effectively.

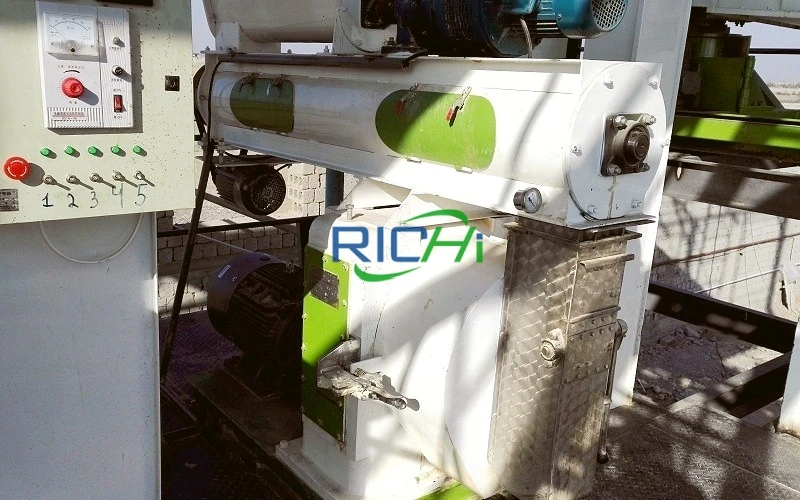

Small Rabbit Feed Pellet Mill in Egypt

A large rabbit farm wanted to make their own feed. We suggested the SZLH250 small rabbit feed pellet making machine – economical, practical, and easy to operate. Now they run it once, and the output feeds their rabbits for three days.

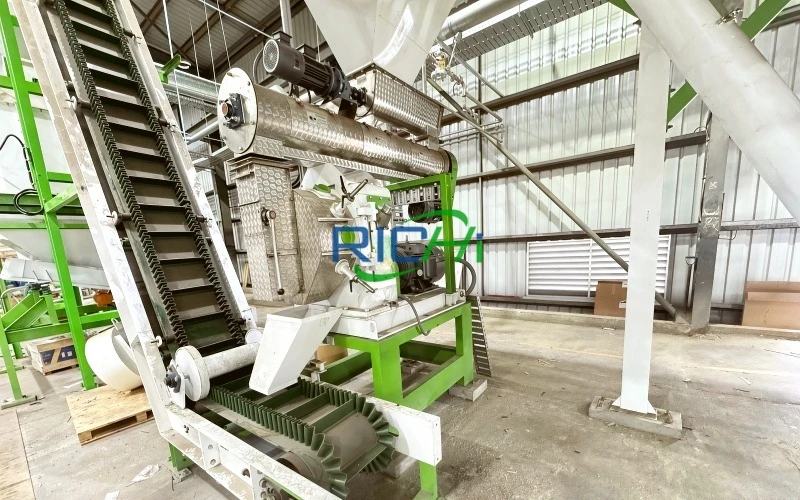

Economical Rabbit Feed Pellet Mill in Cuba

A feed mill supplying the local market had trouble processing high-fiber local materials like moringa and sugarcane. We recommended the SZLH320 animal feed pellet machine. Its longer, wider conditioner quickly cooked those materials to a workable consistency.

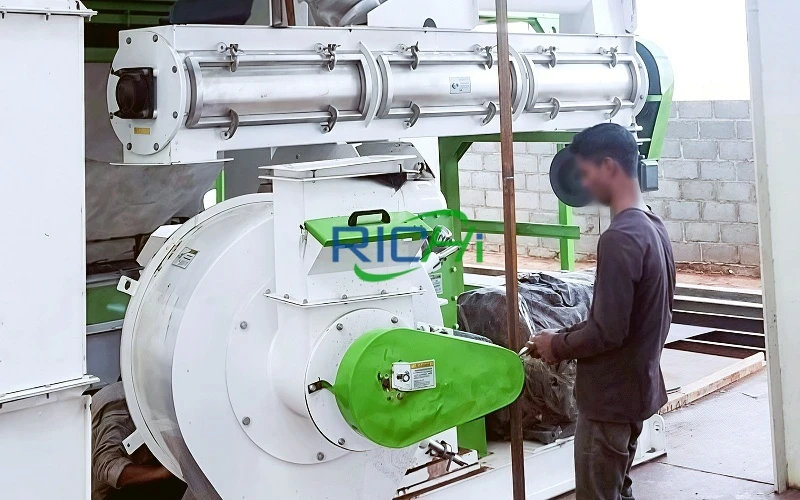

Rabbit Feed Pellet Making Machine in Thailand

The client’s main ingredients were corn and cassava. But cassava fiber is light, and starch gelatinization is tricky to control. We replaced their old unit with the SZLH558 rabbit feed pellet mill, equipped with forced feeding and a double-layer conditioner. The client reported noticeably lower fines after the change.

Rabbit Feed Production Process

What steps turn raw corn and soybean meal into uniform, smooth rabbit feed pellets? The rabbit feed pellet mill acts as the core forming equipment, and you may opt for RICHI’s standard rabbit feed production line to boost pellet quality and production efficiency.

Upgrade My Production Line

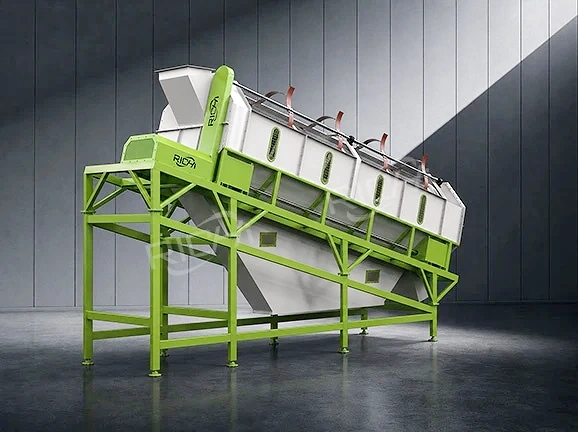

Raw Material Cleaning

First, a cylinder primary cleaning screen and a permanent magnet cylinder remove impurities – poisonous mold, iron filings, etc. That ensures final pellet quality and protects downstream equipment.

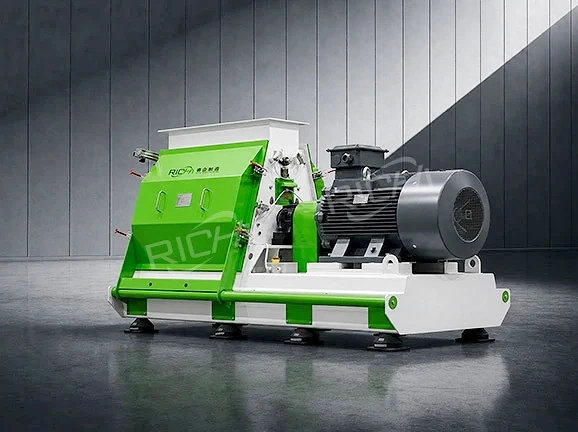

Grinding to Proper Fineness

A rotary distributor sends materials to the grinder. The screen size is customizable, and final particle size is adjustable between 0.5 and 2.0 mm. That meets the digestion needs of rabbits at different growth stages.

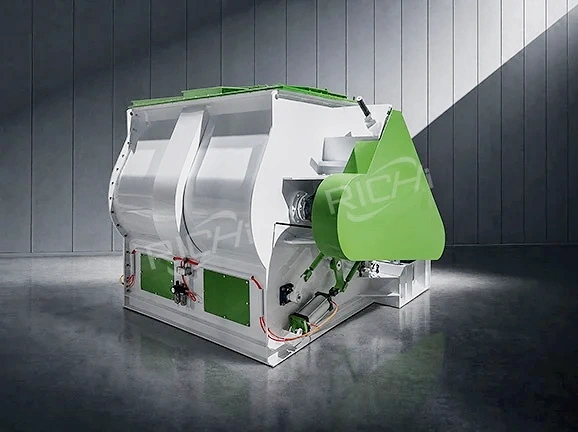

Batching and Mixing

An automatic batching scale weighs ingredients according to the formula, with accuracy within ±0.3%. Then a mixer blends them thoroughly. A bucket elevator lifts the mix to the pre-pelleting bin.

Conditioning and Pelleting

Material enters the conditioner of the rabbit feed pellet mill and stays there for 10–20 seconds with steam. Temperature reaches 70–80°C – that’s ready. The ring die and rollers press the material, and the cutter slices it to the required length.

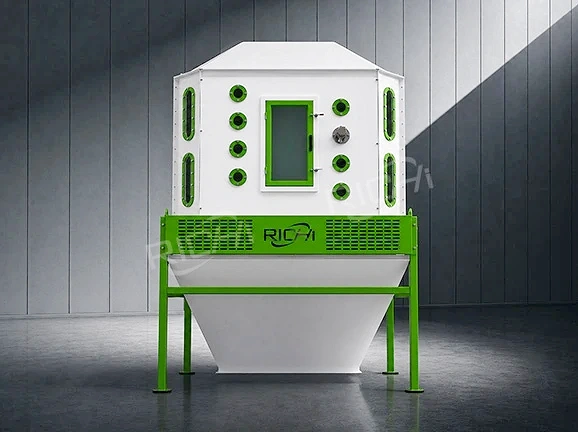

Pellet Cooling

The temperature of freshly made rabbit food is 80°C, so it needs to be sent to a counter-flow cooler to cool down, otherwise it will easily break when exposed to direct air. Then the rotary grading screen selects the qualified ones and enters the finished product warehouse.

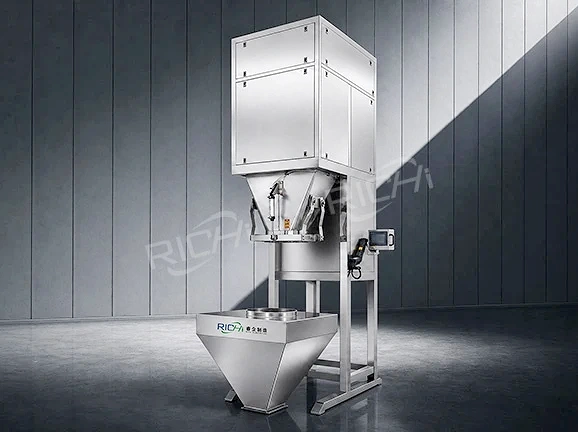

Automatic Packaging

Most clients choose an automatic bagging machine. It can package 10–50 kg bags, with accuracy within ±0.2%. Seal options include heat sealing, stitching, or combined closure – you pick what works.

Cleaning

Grinding

Mixing

Pelleting

Cooling

Packaging

Where Our Rabbit Feed Pellet Mill Applies

This rabbit feed pellet making machine is versatile. It suits many production scenarios, and it also handles chicken, duck, cattle, and sheep feed. Whether your materials are soybeans, corn, alfalfa, or straw – they all become quality rabbit pellets.

Multiple Production Scenarios

If you run a rabbit farm, use this rabbit feed pellet mill to make your own feed. Capacities start at 500 kg/h – enough for your herd.

It also works for mixed-species small to medium farms, and adapts to professional feed mills and rabbit feed lines. Whether you need small batches with frequent changeovers, or large-scale regional production, this machine fits.

Wide Raw Material Adaptability

Rabbit feed contains lots of roughage – alfalfa, straw, hay. To help rabbits grow well, you also add energy feeds like corn, barley, and sorghum, plus protein sources like soybean meal and rapeseed meal.

Our mill features forced feeding, high-wear-alloy ring dies, and an extended conditioner designed for high-fiber recipes. No matter how complex your formula, the machine handles it efficiently.

Multiple Feed Types

Markets change – and you may need to shift product lines. No problem. This machine doesn’t just make rabbit feed. By adjusting the ring die and compression ratio, you can produce poultry pellets (chicken, duck, goose) and livestock pellets (pig, cattle, sheep).

For feed producers, buying one machine that covers multiple species improves utilization and gives you a competitive edge.

Buyer’s Guide & Support Center

Here we have collected some issues that customers are more concerned about before purchasing a pellet machine. We hope to help you invest in your own rabbit feed pellet mill. If you have any more questions, please contact us.

What capacities do your rabbit pellet machines offer, and how do I pick the right model?

→

Our main SZLH series covers 1–40 t/h. The right choice depends on your raw materials, capacity needs, budget, etc. Contact us – our consulting team will give you professional advice.

How long does the machine last? How often do the ring die and rollers need replacement?

→

With proper maintenance, the rabbit feed pellet mill itself can run for over a decade. The die and rollers are wear parts – they contact raw materials directly, so they typically last 1,200–1,500 hours. After that, just replace them; the rest of the machine continues as usual.

My formula contains 40%–50% alfalfa and straw. Can your machine pellet that?

→

Yes. Our heavy-duty ring-die design with multi-layer conditioners is purpose-built for high-fiber materials.

Is the rabbit feed pellet mill easy to operate? Is daily maintenance complicated?

→

Operation is simple. You can start with one button, and intelligent controls adjust parameters automatically.

Daily maintenance is quick – before and after each shift, check the die, rollers, residual material, safety switches, and bolts. It takes less than five minutes.

Can I see the manufacturing process for my machine?

→

Yes. We offer factory tours and virtual visits. After you place an order, you’ll have a dedicated sales representative who will update you on production progress.

You can also watch the pellet mill running with your own recipe. Give us your formula, and we’ll record a trial run for you – so you see the pellet quality first-hand. We also have many customer case studies for reference.

What after-sales service do you provide?

→

We offer a one-year warranty in line with machinery industry standards – covering non-human-caused defects. We also provide lifetime repair service, charging only for parts. When a breakdown occurs on your rabbit feed pellet mill, our online support team is available 24/7 to troubleshoot. Our professional engineers can reach your site within 48 hours.
