Rice Husk Pellet Mill
Rice Husk Pellet Mill Overview

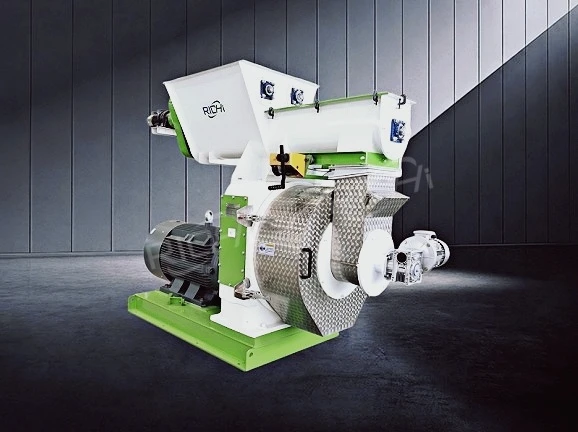

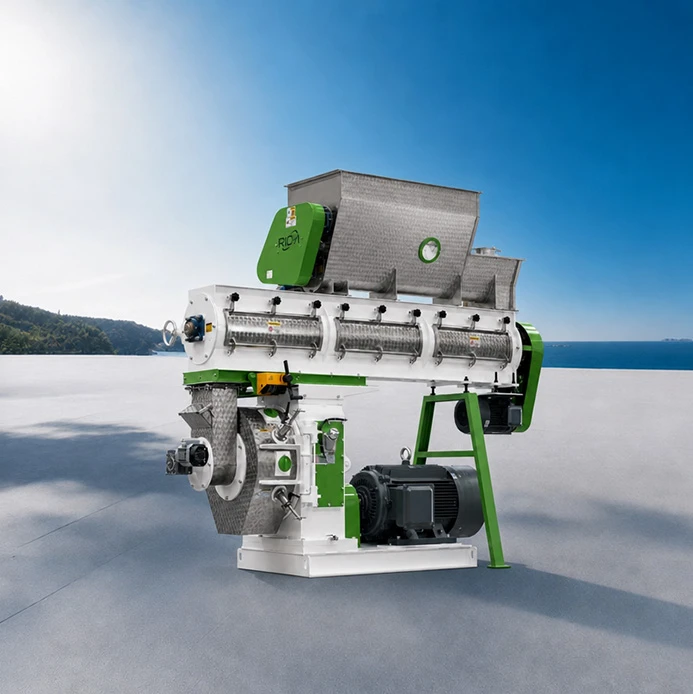

The RICHI CZLH series rice husk pellet mill is a ring die pellet mill designed for agricultural biomass materials. Besides rice husk, it can also pelletize materials such as rice bran and wood chips.
With the right compression ratio, pelletizing system, and power system, the machine can handle different rice husk conditions. Therefore, it can meet the production needs of rice processing plants and biomass fuel manufacturers.
Capacity: 0.5-8 T/H
Power: 22-250 kW
Rice Husk Pellet Mill in Operation
Rice husk goes through feeding, compression, and cutting before becoming uniform fuel pellets. You can watch the factory video below to see the machine running under actual production conditions.
PREV
NEXT
Rice Husk Pellet Mill Models and Specifications
If you’re planning to purchase a rice husk pellet machine, start by defining your target capacity. The required capacity will determine the machine model and configuration. For a more detailed recommendation, feel free to contact us.
| Model | CZLH320 | CZLH350 | CZLH420 | CZLH520 | CZLH678 | CZLH768 |
|---|---|---|---|---|---|---|
| Capacity (t/h) | 0.5-0.6 | 1-1.2 | 1.8-2 | 2.8-3 | 4-5 | 6-8 |
| Main motor power (kW) | 22 | 37 | 90 | 132 | 200 | 250 |
| Arch-breaking feeder power (kW) | 2.2 | 2.2 | 3 | 3 | 3 | 4 |
| Forced feeder power (kW) | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 | 1.5 |
| Ring die diameter (mm) | 320 | 350 | 420 | 520 | 673 | 762 |
| Finished pellet diameter (mm) | 4-12 | 4-12 | 4-12 | 4-12 | 4-12 | 4-12 |

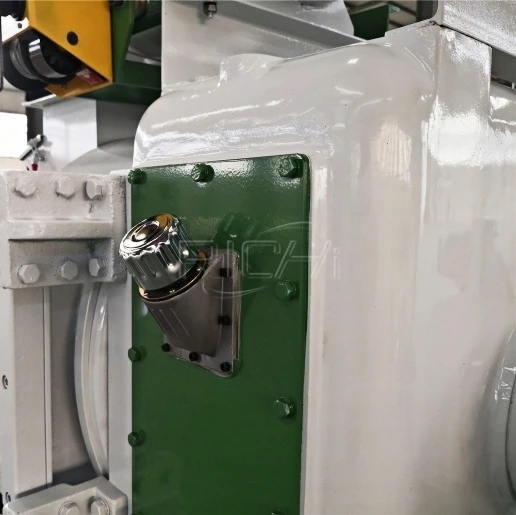

Structural Design of Rice Husk Pellet Mill
With more than 30 years of experience developing husk pellet machines, we’ve found that long-term stable operation depends heavily on the design of the core components. Below are the key points buyers should consider when choosing an industrial rice husk pellet making machine.
Rice Husk Pellet Mill Applications
RICHI rice husk pellet machines are mainly used to pelletize rice husk and other biomass materials. Depending on the raw material and final product, the biomass pellet machine can be used for biomass fuel production, agricultural waste utilization, and other pellet products.
PREV
NEXT
See Our Rice Husk Pellet Mill Projects
RICHI husk pelle machine has been exported to more than 140 countries and regions. See how we develop suitable rice husk pelletizing solutions based on different raw materials and production requirements.

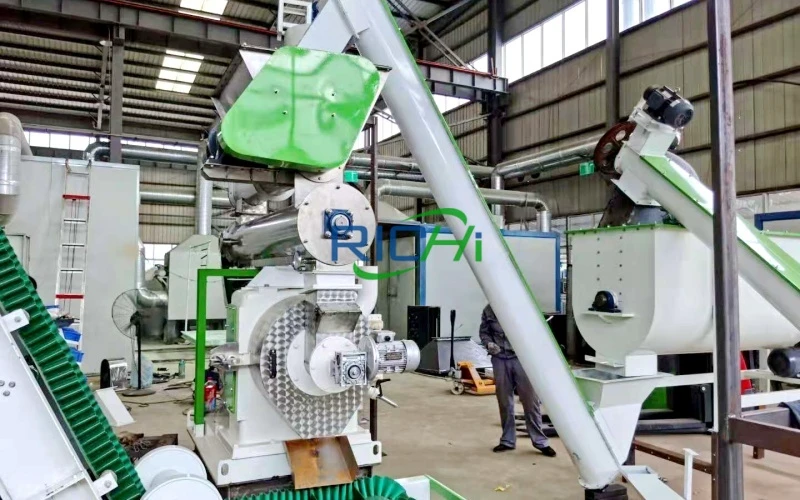

India Rice Husk Pellet Mill Project
Capacity: 1.5 t/h
Raw Materials: Rice husk, rice straw, cottonseed hulls, and other agricultural residues.
Production Requirement: Process rice husk and other agricultural residues into biomass fuel for commercial heating and industrial boilers.

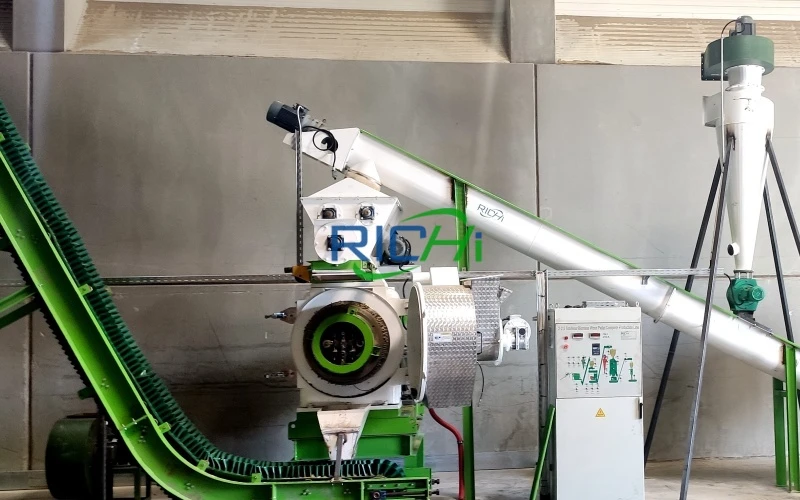

France Rice Husk Pellet Mill Project
Production Capacity: 2–3 t/h
Raw Materials: Rice husk, straw, chicken manure, cow manure, and other livestock and poultry manure.
Production Requirement: Mix agricultural residues with livestock and poultry manure to produce 4–6 mm organic fertilizer pellets.

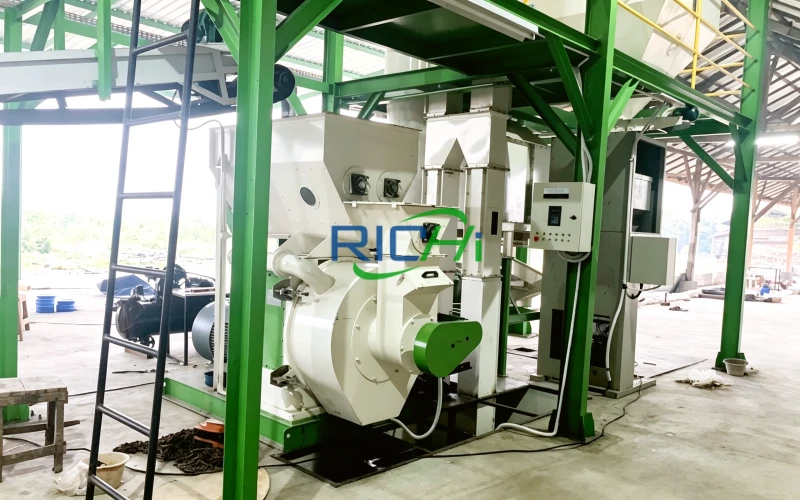

Brazil Rice Husk Pellet Mill Project
Production Capacity: 3.5 t/h
Raw Materials: Rice husk, rice straw, wood chips, and other biomass materials.
Production Requirement: Produce high-density biomass fuel pellets for the local industrial market.

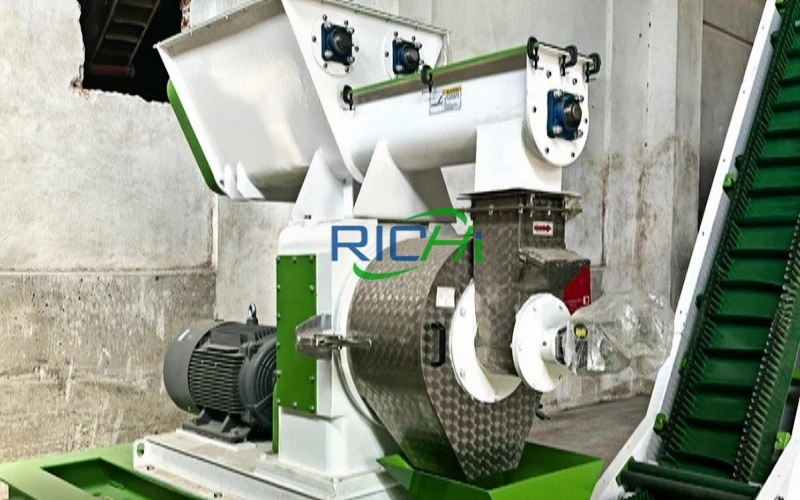

Egypt Rice Husk Pellet Mill Project
Production Capacity: 2 t/h
Raw Materials: Rice husk, wood chips, straw, and other plant fibers.
Production Requirement: Produce animal bedding pellets for poultry and livestock farms.
PREV
NEXT
Production Line Design for Rice Husk Pellet Mill
RICHI provides turnkey rice husk pellet production line services based on your raw materials, target capacity, and finished pellet specifications. Not every project needs the same equipment configuration. Instead, we select the process based on factors such as impurities, particle size, and moisture content.
Rice Husk Cleaning
Rice husk first goes through the cleaning stage before entering the production line. A cleaning screen removes stones, soil, and other unwanted materials, while a magnetic separator removes ferrous metal contaminants.
Cleaning the raw material in advance reduces equipment wear during operation. It also provides cleaner and more stable material for the pelletizing process.
Rice Husk Crushing
Depending on the raw material condition and pelletizing requirements, the cleaned rice husk enters a hammer mill. The screen specification can be selected according to the production requirements, allowing the discharge particle size to be adjusted.
RICHI hammer mills can produce a particle size of 0.5–20 mm. The screen can be selected based on the particle size required for the rice husk pelletizing process. Proper crushing makes the material more uniform, which supports stable feeding and pelletizing.
Rice Husk Drying
Whether a dryer is needed depends on the actual moisture content of the rice husk at the customer’s site. If the material already has suitable moisture for pelletizing, this step can be reduced or omitted. When the moisture content is too high, the rice husk needs to be dried first.

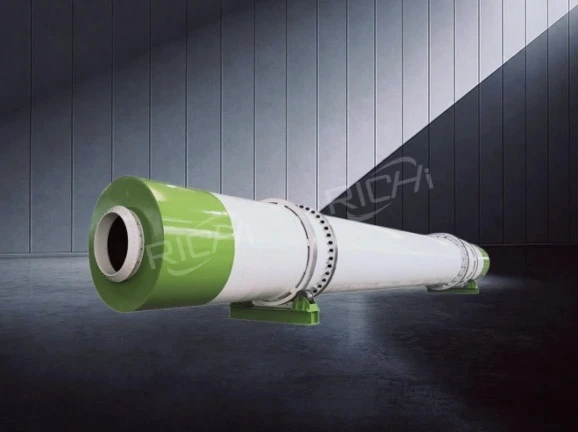

For projects that require drying, we can provide a rotary dryer to adjust the moisture content. It is suitable for fibrous and lumpy biomass materials such as rice husk and wood chips, helping maintain more consistent moisture before pelletizing.
Rice Husk Pelletizing
After cleaning, crushing, and necessary moisture adjustment, the rice husk enters the rice husk pellet mill for compression and forming.

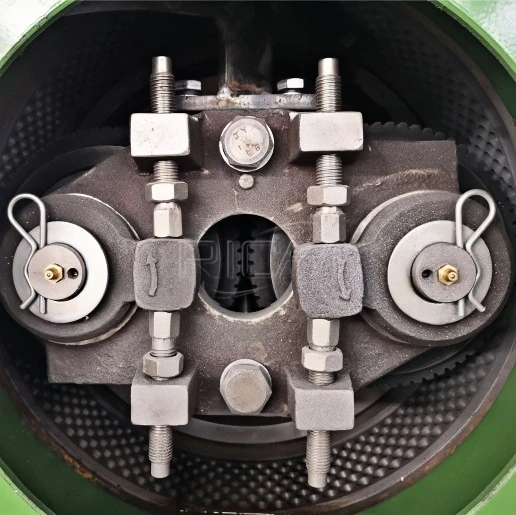

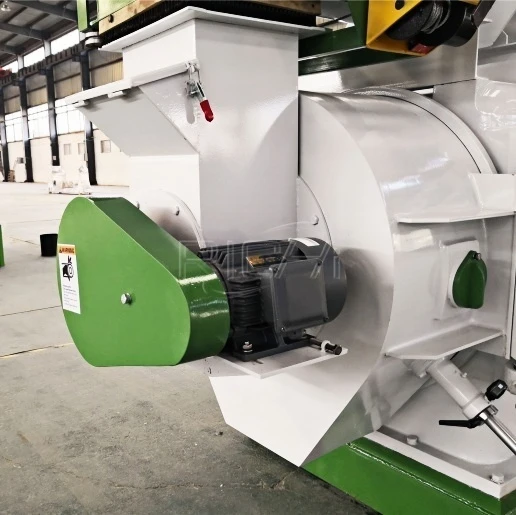

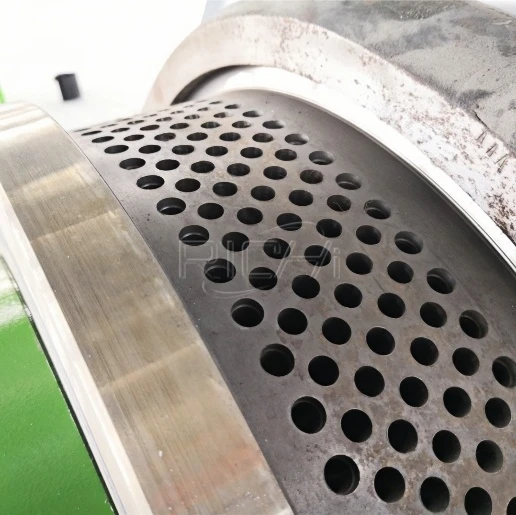

During pelletizing, the forced feeder delivers the rice husk evenly into the pelletizing chamber. The material is then compressed between the ring die and rollers and cut into rice husk pellets.
For materials with a distinctive fiber structure like rice husk, stable feeding and a suitable pelletizing design both affect continuous operation and pellet formation.
Cooling & Screening
Fresh pellets leaving the pellet machine have a relatively high temperature and may contain some fines. Therefore, they should not go directly to the packaging stage.
First, the pellets enter a counterflow cooler. The finished pellet temperature is normally controlled to within 3–5°C above room temperature. After cooling, the pellets pass through a vibrating screen to remove fines and non-conforming pellets, improving the uniformity of the finished product.
Finished Product Packaging
Qualified rice husk pellets enter an automatic packaging scale. The system weighs and bags the pellets according to the preset weight.
RICHI can provide packaging solutions for 10–50 kg bags based on your sales and transportation requirements. The weighing accuracy can be controlled within ±0.2%. After packaging, the rice husk pellets are ready for storage or further transportation.
Rice Husk Pellet Mill FAQs
Thinking about buying a rice husk pelletizer but not sure about the pellet size, machine configuration, or price? Here are some questions customers often ask before buying our equipment.
What pellet sizes can your CZLH series machines produce?
→
The equipment can produce pellets with a diameter of 4–12 mm. The right size depends on the final use, and we can select the ring die according to your requirements.
Common pellet sizes include:
- 4–6 mm: Commonly used for small heating equipment in homes and commercial applications.
- 6–8 mm: A common size for biomass fuel pellets used in industrial boilers and heating systems.
- 8–10 mm: Used for some industrial boilers and biomass combustion systems.
- 10–12 mm: Suitable for industrial combustion equipment and other applications that require larger pellets.
If you are not sure which size to choose, tell us what you plan to use the pellets for and where you plan to sell them. We can recommend a suitable pellet size and ring die.
What information do I need to provide before buying?
→
To select the right rice husk pellet mill, please provide the following information:
- Rice Husk: Raw material condition and source
- Target Capacity: For example, how many tons you need to produce per hour
- Moisture Content: Helps us determine whether the raw material needs pretreatment
- Pellet Size: Required pellet diameter
- Voltage / Power Supply: Used to determine the motor configuration
If you already have part of a production line, you can also send us the factory space and existing equipment information. We can check the new unit configuration based on your current equipment.
Can I buy only a rice husk pellet mill if I already have my own production line? How can I check whether your machine will fit my existing line?
→
Yes. If you already have a hammer mill, dryer, cooler, packaging machine, or other equipment, you can buy only the pelletizer.
To check whether our machine can work with your existing line, send us the equipment models, capacity, main specifications, and connection information. We will check the matching conditions based on your raw material, target capacity, and existing equipment.
If needed, we can also suggest how to connect the pelletizer with your current equipment.
How much installation space does the machine need?
→
The required space depends on the machine model, capacity, and feeding and discharge arrangement.
For a standalone unit, the footprint is relatively small. If you also need conveyors, cooling, screening, or other equipment, you will need additional space for operation and maintenance.
After the machine model is confirmed, we can provide the machine dimensions and installation requirements. This will help you plan the installation area before the equipment arrives.
For a complete production line, we can also provide a layout based on your factory space.
What is the rice husk pellet machine price?
→
The price depends on the machine model, production capacity, configuration, and level of automation.
If you only need stand-alone equipment, we will select the model and configuration based on your target capacity, rice husk condition, pellet size, and power supply. We can then give you a specific quotation.
You can send us these basic details first. We will recommend a suitable model and provide a quote based on your actual requirements.
Can I send my rice husk for testing before placing an order?
→
Yes. If this is your first time buying a machine, we recommend testing your raw material before placing an order.
By testing your rice husk, we can check the pellet forming result, pellet quality, and machine operation. The test results also help us choose the right machine model and configuration.
If you are planning to buy a machine, send us your rice husk sample, target capacity, and required pellet size. Our technical team can test the material and recommend a suitable model and configuration for your project.
