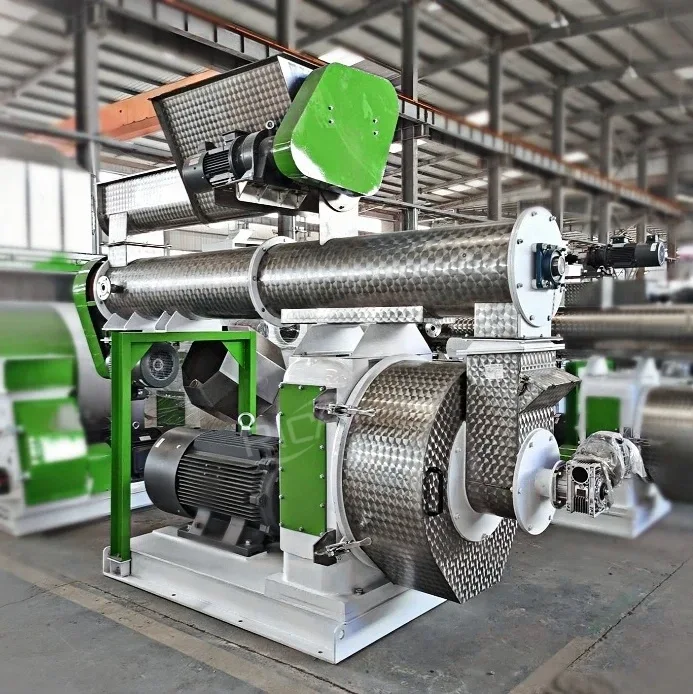

Goat Feed Pellet Making Machine
Our goat feed pellet making machine is suitable for small goat farms and commercial feed mills. It processes grains and forage into uniform pellets for goats at different growth stages. This can improve production efficiency while helping control feed processing costs.
Goat Feed Pellet Making Machine Overview
The goat feed pellet making machine compresses pre-processed grains, forage, and mixed feed ingredients into uniform pellets. With suitable ring die specifications and processing parameters, it can produce pellets from 2–12 mm for kids, growing goats, fattening goats, and breeding goats.
For goat farms, commercial feed mills, and livestock feed plants, RICHI animal feed machines can work as standalone equipment. They can also serve as the core pelletizing equipment in a complete goat feed production line.
Equipment configuration can be adjusted according to your feed formulation, raw materials, pellet size, and target capacity. With more than 30 years of industry experience, RICHI also provides turnkey solutions for goat feed pellet production projects.
Capacity: 1-40 T/H
Power: 22-315 kW
Goat Feed Pellet Making Machine Pelletizing Process
Once the machine starts, the raw materials go through conditioning, compression, and forming inside the pelletizing system. Watch the video below to see how the machine works. The equipment structure section further down explains how the main components work together during pelletizing.
PREV
NEXT
Raw Materials for Goat Feed Pellet Making Machine
A goat feed making machine is not limited to one type of feed ingredient. Depending on the formulation and raw material characteristics, it can process grains, forage, and mixed feed ingredients into uniform pellets.
Each material behaves differently during pelletizing. RICHI engineers select ring die specifications, compression ratios, and processing parameters according to moisture content, fiber content, particle size, and forming characteristics.
▷Corn
▶Wheat
▷Barley
▶Oats
▷Soybean Meal
▶Peanut Meal
▷Rice Bran
▶Wheat Bran
▷Alfalfa
▶Hay
▷Grass Meal
▶Corn Straw
Goat Feed Pellet Making Machine Models and Parameters
After more than 30 years of technical development and continuous upgrades, the RICHI SZLH series now covers capacities from 1–40 t/h. This range covers production needs from small and medium-sized goat farms to large commercial feed mills. We can recommend a suitable model based on your target capacity.
| Model | Main Motor Power (kW) | Conditioner Power (kW) | Ring Die Inner Diameter (mm) | Production Output (t/h) | Finished Pellets Diameter (mm) |
|---|---|---|---|---|---|
| SZLH250 | 22 | 1.5 | 250 | 1-1.5 | 2-12 |
| SZLH320 | 37 | 4 | 320 | 3-4 | 2-12 |
| SZLH350 | 55 | 4 | 350 | 5-6 | 2-12 |
| SZLH420 | 110 | 7.5 | 420 | 10-12 | 2-12 |
| SZLH508 | 160 | 7.5 | 508 | 15-16 | 2-12 |
| SZLH558 | 185 | 11 | 558 | 20-22 | 2-12 |
| SZLH678 | 250 | 11 | 673 | 30-33 | 2-12 |
| SZLH768 | 315 | 11 | 762 | 38-40 | 2-12 |
Note: The parameters above are for reference only. Actual performance of the goat feed pellet mill may vary depending on raw material characteristics, feed formulation, operating conditions, and equipment configuration.

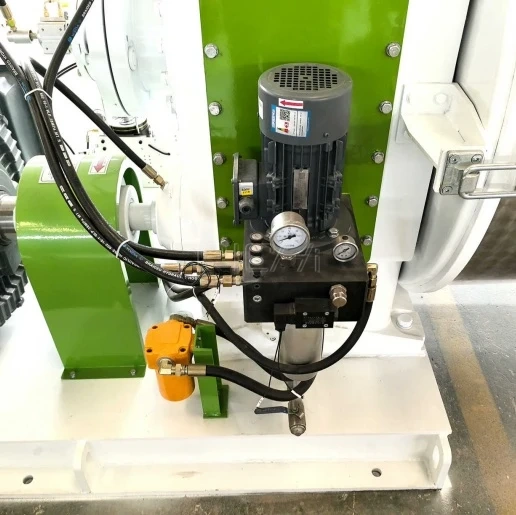

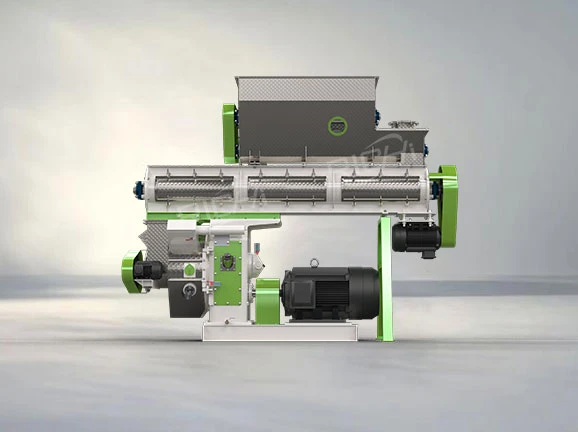

Key Components of SZLH Goat Feed Pellet Making Machine
The RICHI SZLH series is designed for continuous feed pellet production. Key components are optimized in terms of material, machining accuracy, and structural design. This supports stable operation while making routine maintenance and component replacement more convenient.
Global Goat Feed Pellet Making Machine Case Studies
The right sheep feed pellet machine is not necessarily the model with the highest capacity. What matters is whether the equipment matches your raw materials, required output, and production method. The following projects show how RICHI has configured equipment for different production needs.

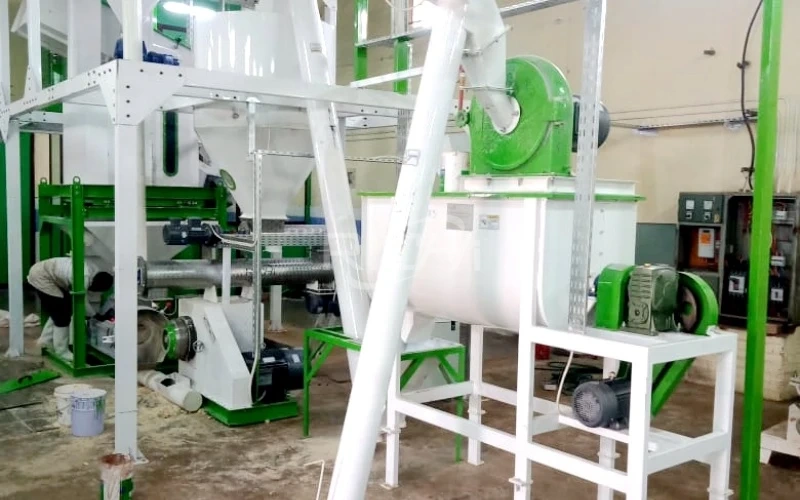

Goat Feed Pellet Making Machine Project in India
An Indian goat farm wanted to move from traditional mixed feeding to standardized pellet feed production. Feed formulations and pellet sizes also varied between growth stages.For this project, we equipped the SZLH350 with different ring dies. The customer can replace the dies as needed and produce 4, 6, and 8 mm feed pellets.
Capacity: 5 t/h
Raw materials: Corn, wheat bran, soybean meal, peanut meal, mineral additives
Application: Goat feed production

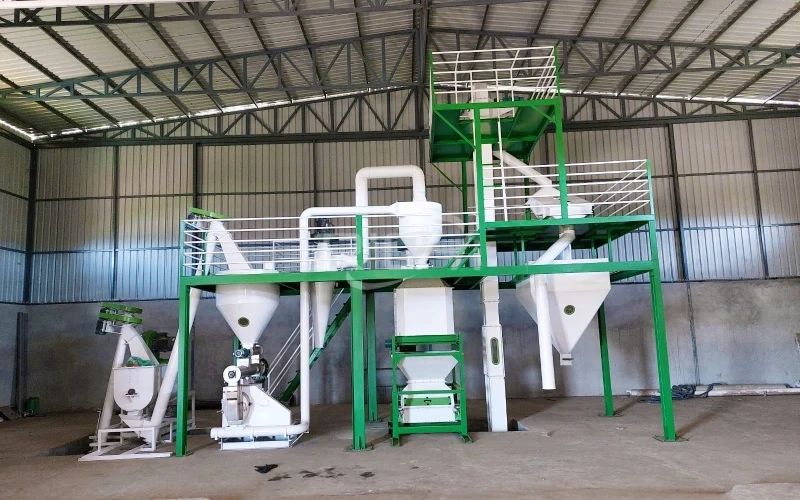

Small Goat Feed Pellet Making Machine Project in France
For a small-scale project in France, RICHI designed a goat feed production line covering pelletizing, cooling, and screening.
The compact setup is simple to operate and suits production at 1–1.5 t/h.
Model: SZLH250
Capacity: 1–1.5 t/h
Raw materials: Hay, alfalfa, wheat, barley
Pellet diameter: 4–8 mm

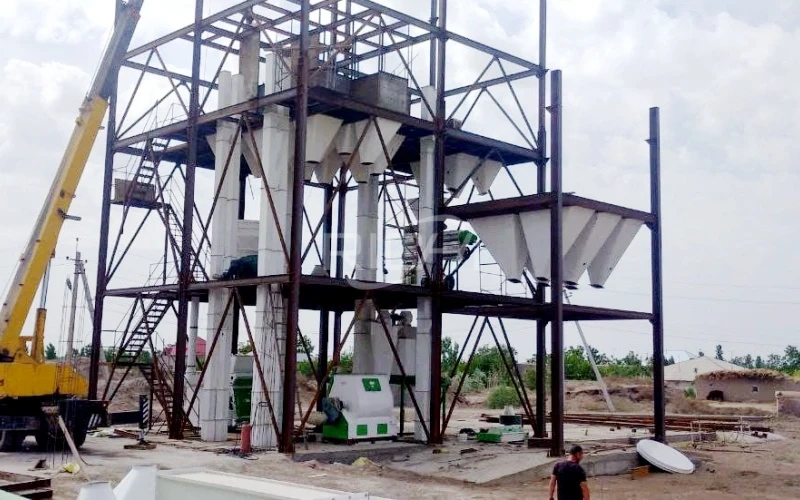

Industrial Goat Feed Production Line Project in Brazil
The Brazilian project uses the SZLH558 as the core pelletizing machine. RICHI also supplied a complete forage feed processing system to match the customer’s production requirements.
Capacity: 20 t/h
Raw materials: Alfalfa, corn, soybean meal, crop by-products
Pellet diameter: 6–8 mm
Application: Goat and ruminant feed

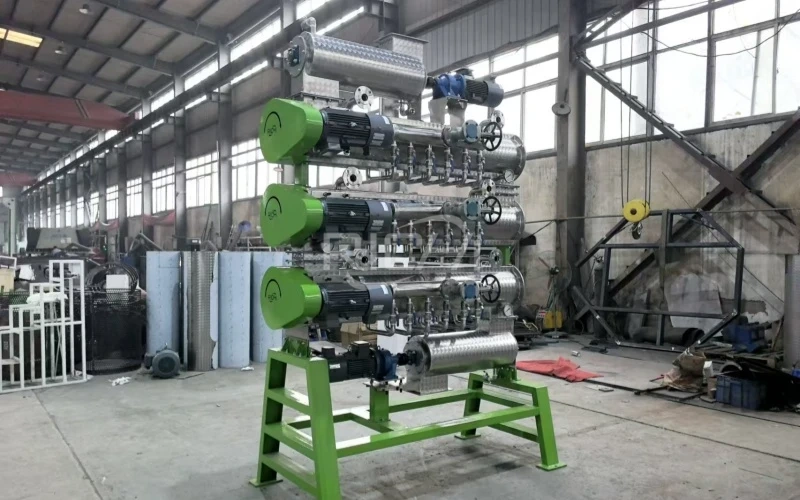

Commercial Goat Feed Pellet Making Machine Project in Nigeria
Corn, soybean meal, and wheat bran are readily available in the local market. The customer needed a machine that could handle different formulations and support long-term continuous production.
Solution: SZLH420 heavy-duty pelletizing machine + three-layer conditioning system
Capacity: 12 t/h
Raw materials: Corn, soybean meal, wheat bran, peanut shells
Pellet diameter: 6–8 mm
Application: Goat and other livestock feed
Complete Process Flow of a Goat Feed Pellet Production Line
Goat feed usually contains grains, forage, protein ingredients, and other additives. A goat feed pellet making machine can serve as the core equipment in a complete production line, which may include cleaning, grinding, batching, mixing, pelletizing, cooling, screening, and packaging equipment.

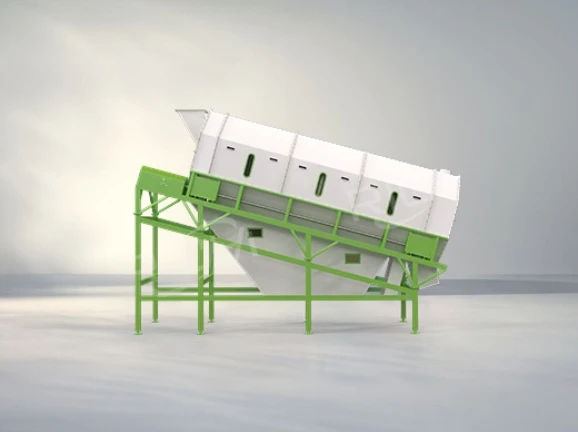

Raw Material Receiving and Cleaning
Raw materials first pass through cleaning equipment to remove stones, metal, and other impurities. This reduces wear on grinders, pellet machines, and other downstream equipment. It also provides cleaner and more consistent material for further processing.

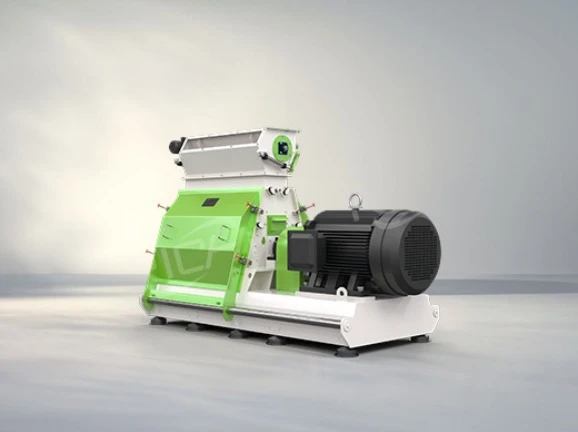

Grinding
Grains such as corn and wheat usually need to be ground before mixing and pelletizing. A particle size of around 3–5 mm is commonly used.
For fibrous materials such as alfalfa and hay, the equipment depends on the material form and fiber length. Options include a forage grinder, round bale breaker, or straw crusher.

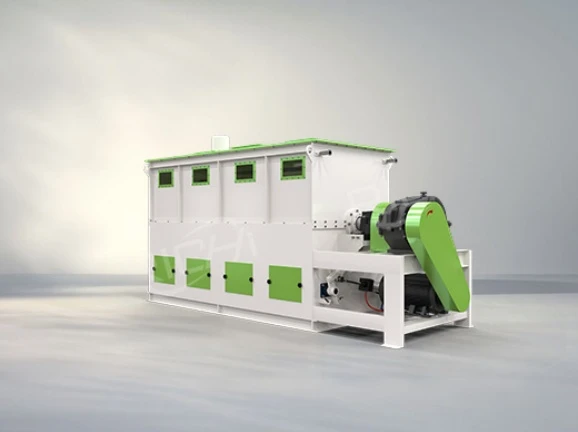

Batching and Mixing
After grinding, the ingredients are accurately batched according to the feed formulation and sent to the mixer. Thorough mixing distributes grains, protein ingredients, forage, and additives throughout the feed mixture.
When the formulation contains a high proportion of forage, drying or moisture adjustment may also be required before batching. The material moisture content can usually be controlled at around 15%, although the suitable level depends on the raw material and pelletizing requirements.
Conditioning and Pelletizing

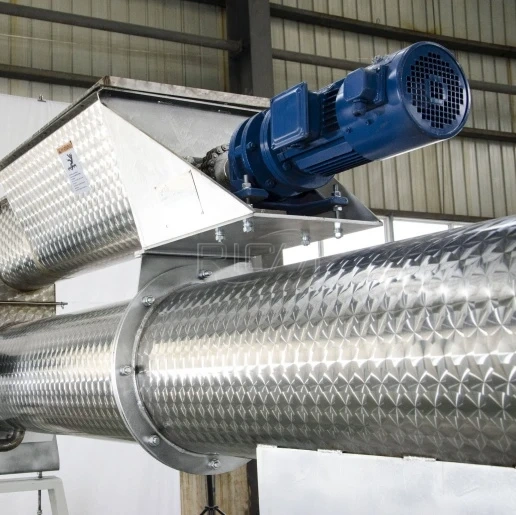

The mixed material enters the conditioner of the SZLH goat feed pellet making machine and comes into contact with steam. It absorbs moisture and softens before entering the pelletizing chamber.

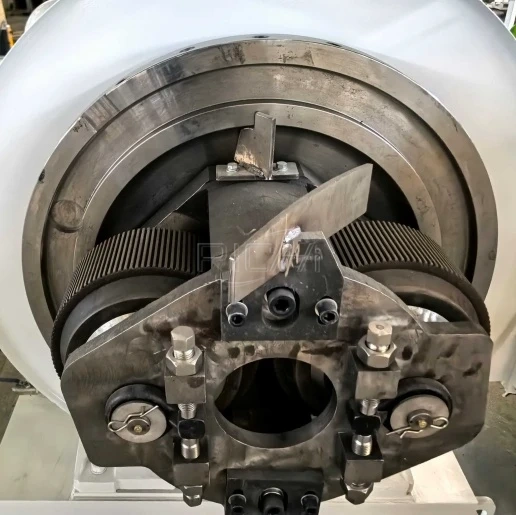

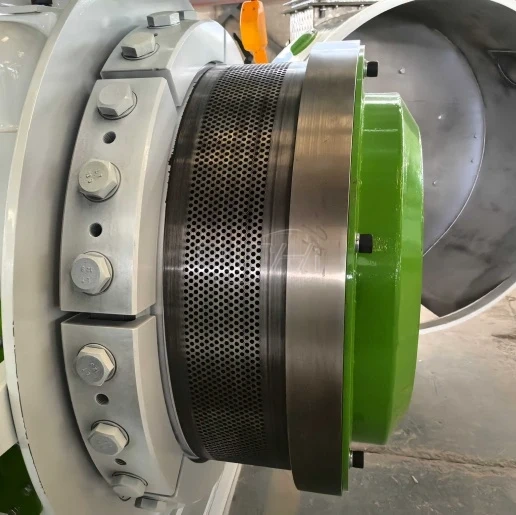

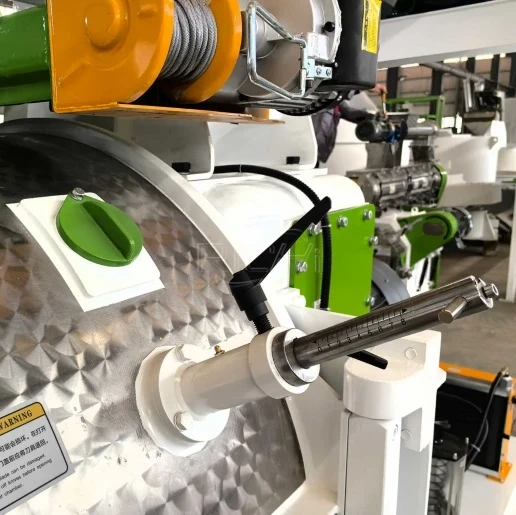

Inside the chamber, the ring die and rollers compress and form the material. Cutting knives then divide the formed strands into cylindrical pellets of the required length.

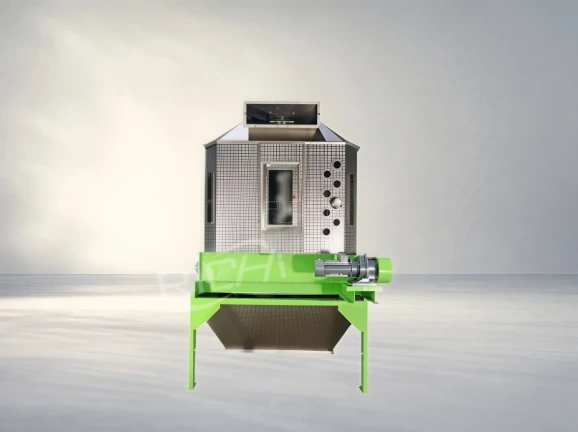

Cooling and Screening
Fresh pellets leave the pelletizing machine with relatively high temperature and moisture content. A counterflow cooler lowers the temperature and helps stabilize the pellet structure.
After cooling, the pellets pass through screening equipment to separate fines and undersized or unqualified pellets. Qualified pellets then move to the finished product section.

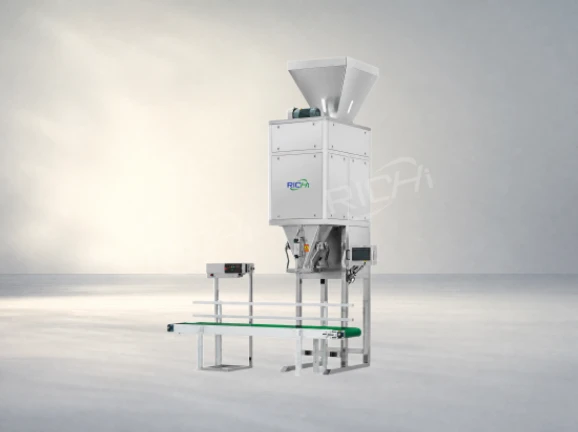

Packaging
Finished pellets can be automatically weighed and packed according to sales and transportation requirements. Packaging equipment can be configured according to your packaging method and production capacity. Common package sizes range from 10–50 kg.
Goat Feed Pellet Making Machine for Different Applications
The way a goat feed machine is used depends largely on the production scale. It can serve farms producing feed for their own animals or work as the main pelletizing equipment in a commercial feed mill.

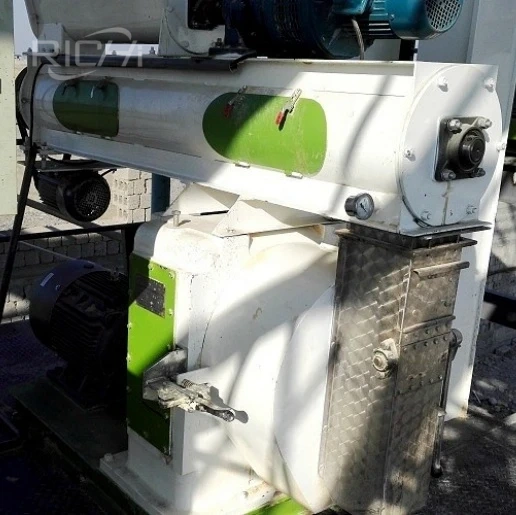

Goat Farms
Use locally available ingredients to produce your own goat feed pellets. Choose standalone equipment or a small production line based on farm size.

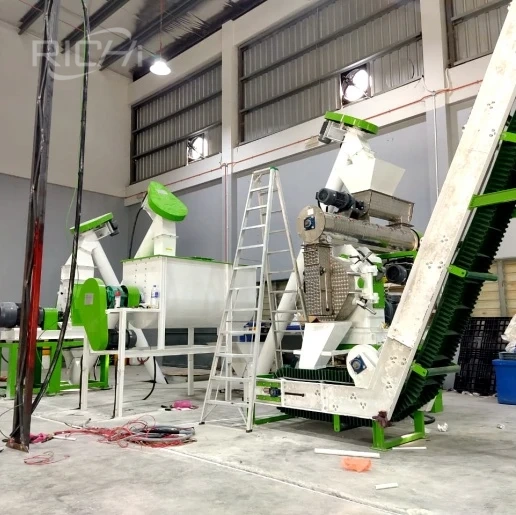

Large-Scale Livestock Farms
For large-scale continuous production, RICHI can configure pelletizing, conditioning, cooling, and screening equipment according to your target capacity.

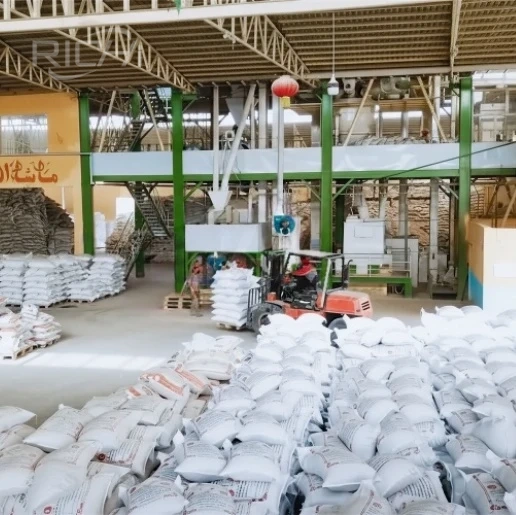

Goat Feed Processing Plants
For dedicated goat feed processing, RICHI configures the pelletizing system based on raw material characteristics and required pellet specifications.

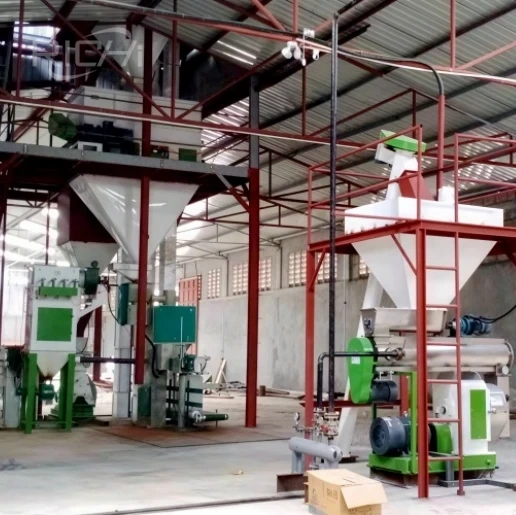

Commercial Feed Mills
Suitable for multi-formulation and multi-product production. The goat feed pellet making machine can work independently or integrate into a complete commercial feed production line.
PREV
NEXT
FAQs About Goat Feed Pellet Making Machine
Below are some common questions about purchasing and using the RICHI goat feed pellet machine. They cover several points buyers usually consider before choosing a production solution.
Can This goat feed pelletizer Process High-Fiber Forage and Straw?
→
Yes, but high-fiber materials place greater demands on grinding, feeding, and pelletizing. Alfalfa, hay, straw, and similar materials need suitable pre-treatment based on fiber length and moisture content. When the forage proportion is high, stable feeding becomes especially important to reduce bridging and uneven material flow.
Why Does Goat Feed Pelletizing Require Steam Conditioning?
→
Steam enters the conditioner and mixes with the feed material, allowing it to absorb moisture and soften. This improves the compression and forming conditions inside the pelletizing chamber. Steam addition and conditioning time should be adjusted according to the formulation and raw material characteristics.
My old machine always gets clogged. How does your equipment solve this problem?
→
Grass meal, alfalfa, and straw are lightweight fibrous materials that can cause bridging and uneven feeding. The feeding system therefore needs to maintain a consistent material flow.

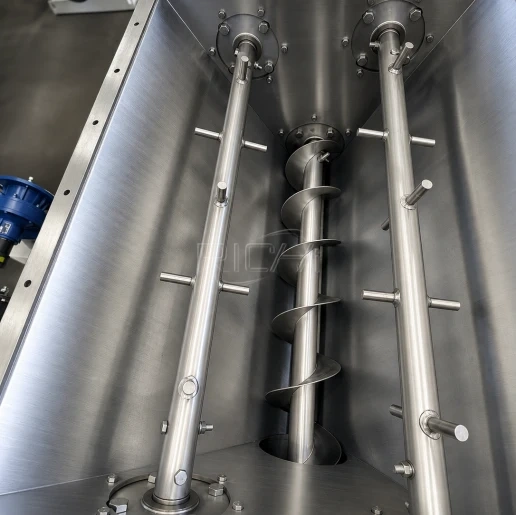

For formulations with a high fiber content, RICHI can configure variable-frequency feeding and forced feeding systems. Operators can then adjust feeding speed, conditioning conditions, and pelletizing parameters to keep material entering the pelletizing chamber steadily.
What Configurations Should I Focus on When Choosing a Goat Feed Pellet Making Machine?
→
Capacity is only one factor. The feeding system, conditioner, ring die and rollers, main transmission system, and overload protection should also be considered.
For formulations with a high proportion of forage or other fibrous materials, feeding stability and pelletizing performance deserve particular attention. Continuous production projects should also take component wear, maintenance requirements, and spare parts supply into account.
How Much Does a Goat Feed Pellet Making Machine Cost?
→
The goat feed pellet machine for goats starts at US$7,500. The actual price depends on the equipment model, target capacity, ring die specifications, configuration, and whether a complete production line is required.
A standalone machine and a complete production line involve different levels of investment, so there is no single fixed price. If you already know your target capacity, raw materials, and pellet specifications, RICHI can recommend suitable equipment and provide a quotation.
Do You Provide Installation, Commissioning, and After-Sales Service?
→
Yes. For complete production line projects, RICHI can provide installation, commissioning, and operator training to help bring the line into operation.
The goat feed pellet production machine comes with a one-year warranty and lifetime technical support after the warranty period. If you encounter problems with pellet quality, equipment operation, or maintenance, you can contact RICHI engineers for technical support.
